GATE mosfet Warfet

WAF

Neuf

Hors stock - Pas de date de réapro

Moyenne des votes pour ce produit
5.0 / 5
Moyenne : 5.0 / 5
Basée sur 4 avis clients.

72,42 € HT

Si vous souhaitez enregistrer votre configuration, vous devez d'abord vous connecter.

Connexion

En savoir plus

Le Warfet de GATE est actuellement l'un des mosfet les plus complets pour les répliques d'airsoft.

Il inclut les fonctions suivantes :

- Boitier de programmation

- Fonction pre-cocking

- Active Breaking activable / désactivable

- Fonction Burst paramétrable 1-5 billes

- Protection batterie intégré

- Intelligent Smart trigger (100% de décharge sur le premier tir)

- Puce MOSFET 3ème génération

- Adapté aux Lifepo4 et LiPo jusqu'à 14.8v

- Résistant aux conditions atmosphériques (norme militaire MIL-V-173C)

- Fusible électronique

- Fonction diagnostic intégrée

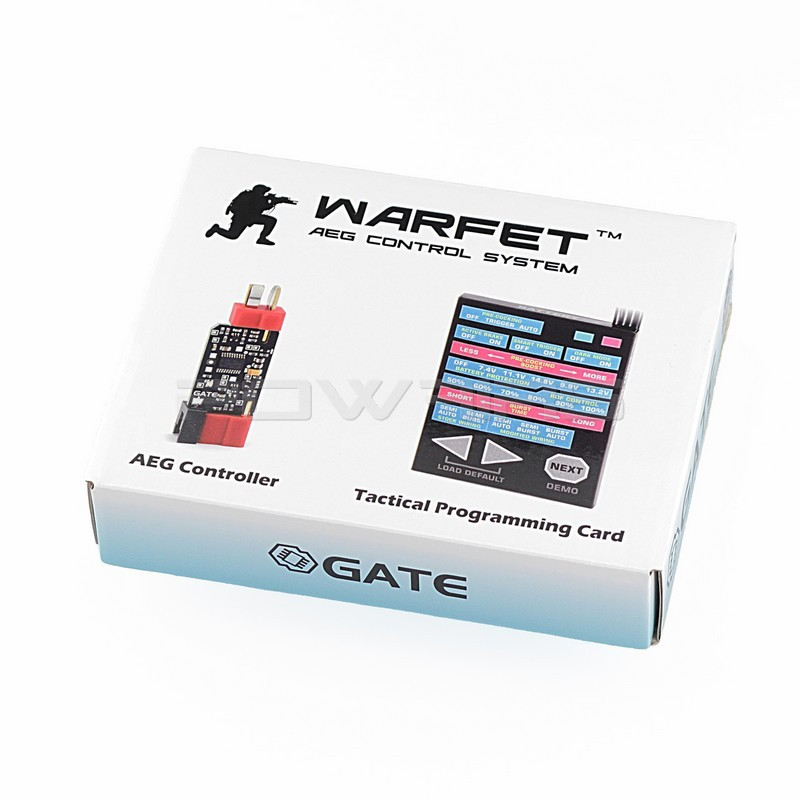

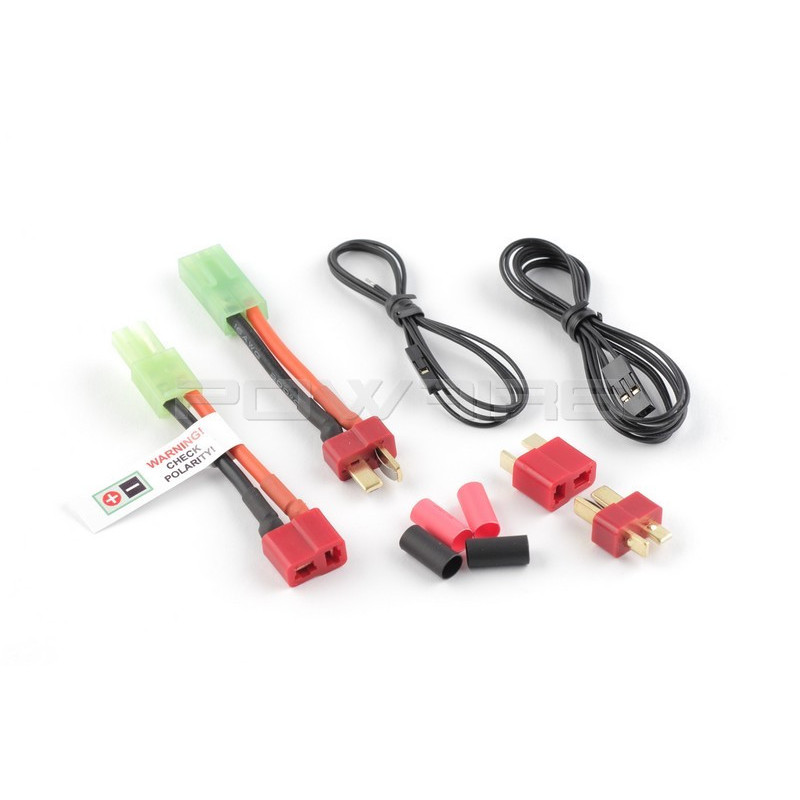

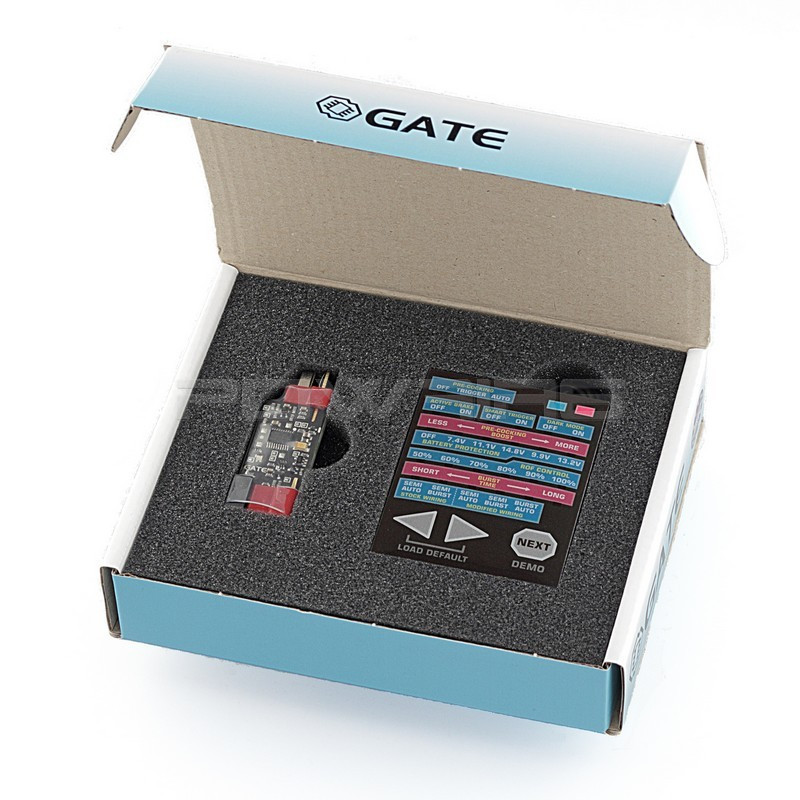

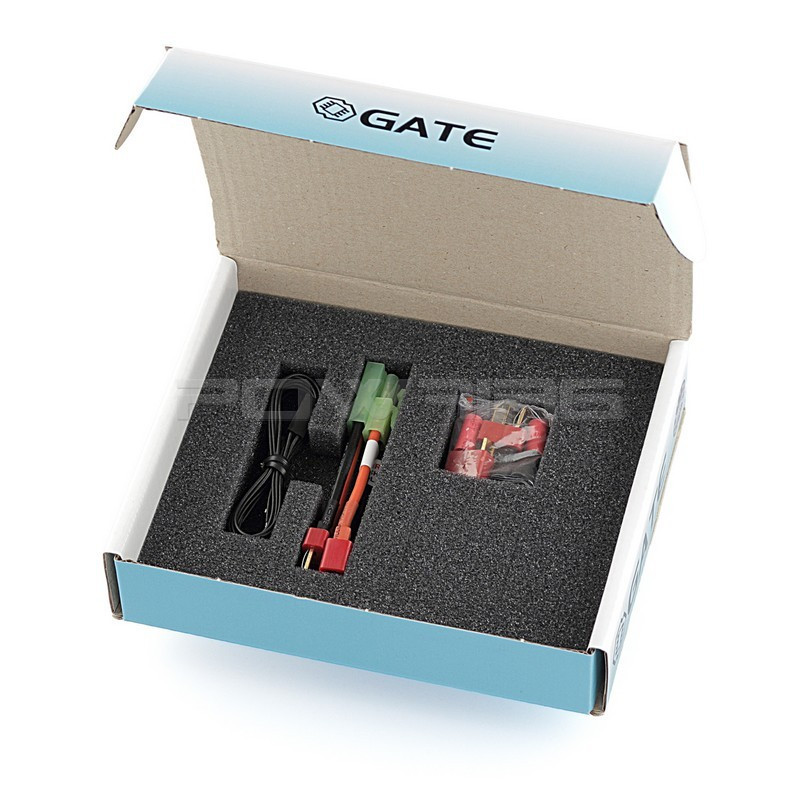

Le MOSFET est livré avec le boitier de programmation,adaptateurs Deans et Tamiya Mini, câbles pour une utilisation recâblée.

Key functions

1 tactical-programming-card

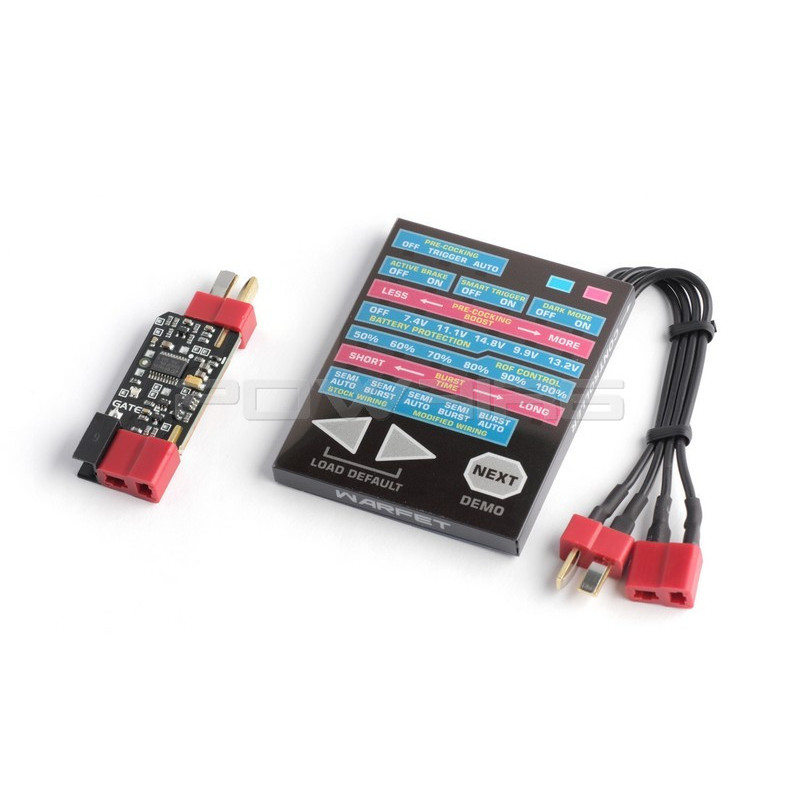

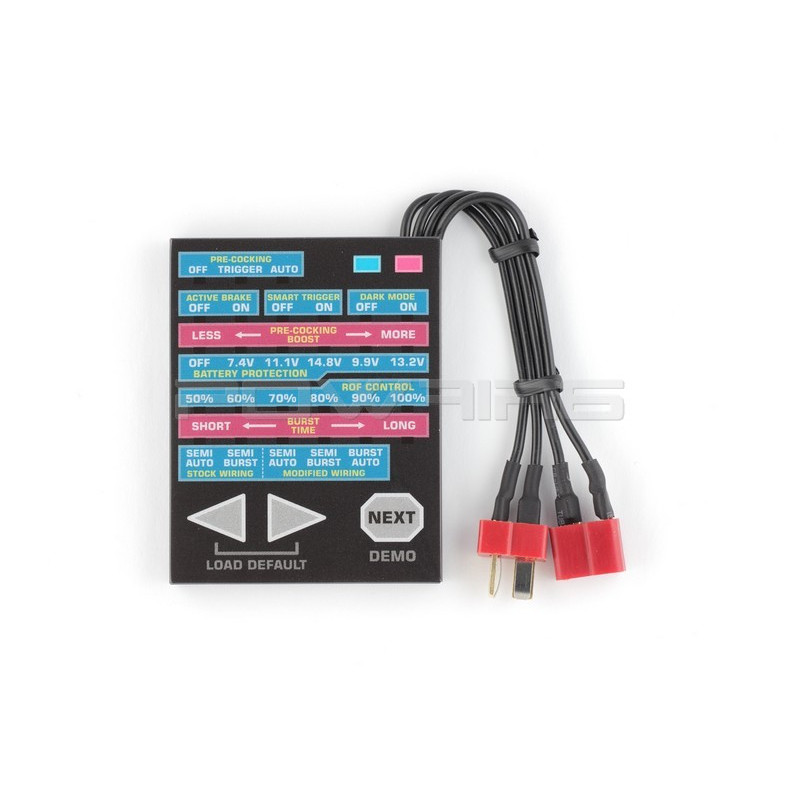

TACTICAL PROGRAMMING CARD

The outstanding Tactical Programming Card provides you with very easy access to the AEG Controller settings. All you need to do is connect the Tactical Programming Card between the battery and the Controller.

2 pre-cocking

PRE-COCKING

Victory in the game is often a matter of fractions of seconds. Thanks to the PRE-COCKING, you gain a trigger reaction similar to a real gun. It allows for initial spring compression, which speeds up the trigger response significantly. You can set the time of PRE-COCKING using the Tactical Programming Card. There are two PRE-COCKING MODES:

1) AUTO MODE – the spring is automatically compressed after each shot,
2) TRIGGER MODE – the first trigger action compresses the spring, and the second trigger action fires the shot.



Please note: using PRE-COCKING increases wear and tear on the gearbox. PRE-COCKING is designed for SEMI mode. In the AUTO mode, it can result in blank shots.

3 plug-and-play

PLUG&PLAY

Super-easy installation, just plug and play. No soldering required. All you need to do is connect the battery and the rifle to the AEG Controller.

4 programmable-burst

PROGRAMMABLE BURST

The burst enables you to shoot a pre-determined number of BBs (1-5 rounds), which is very useful in MILSLIM and when using low-caps. You can transform AUTO MODE to BURST MODE or SEMI MODE to BURST MODE*. The Tactical Programming Card allows you to set the burst time. The AEG Controller automatically corrects the burst time according to the voltage level of the battery.

*SEMI to BURST in modified installations only.

5 3rd-burst

3RD BURST

Burst mode enables you to make 3-shot series. In this way you can save ammunition and increase the realism. You can change AUTO mode to BURST mode or SEMI* mode to BURST mode.

If in SAFE/SEMI/BURST mode you release the trigger earlier, you can make one or two shots. The burst time is set in the menu with accuracy to 4ms. The processor actively compensates for the change in burst time with a decrease in the rate of fire due to battery discharging.

*SEMI to BURST in enhanced mode only

6 configurable-fire-selector

CONFIGURABLE FIRE SELECTOR

The function gives you the option to program your fire selector. There are five operating modes:

- STOCK WIRING SEMI/AUTO
- STOCK WIRING SEMI/BURST
- MODIFIED WIRING SEMI/AUTO
- MODIFIED WIRING SEMI/BURST
- MODIFIED WIRING BURST/AUTO

7 rof-control

RATE OF FIRE CONTROL

This ensures there is no loss of the rifle’s rate of fire, so you can use stronger LiPo batteries, and still have ROF just like in a real gun.
8 smart-trigger

SMART TRIGGER

We know how vital the fast trigger response is during combat. This is why we have developed the Smart Trigger function. It enables you to achieve a faster trigger response. It works with the ROF Control system. During the first shot, the microprocessor sets the ROF Control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full rate of fire, and subsequent shots at a reduced ROF. The best results can be achieved by using a battery with a higher than standard voltage. For example, if you use a 7.4V battery, you can replace it with 11.1V. In this way, you will achieve a faster trigger response with the same rate of fire as with a standard battery. The Smart Trigger is most effective when the Burst time is set at 3 rounds.

9 battery-protection

BATTERY PROTECTION

Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, the Controller will not allow firing.

10 smart-fuse

SMART FUSE

The new AEG Controller should never let you down on the battlefield. It is the best electronic fuse. The AEG Controller has a true current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. If your rifle becomes jammed, the SMART FUSE protects motor and battery against damage. Overheating, overloading or short-circuiting of the electrical system should not damage the Controller.

11 electronic-fuse

ELECTRONIC FUSE

We know how important reliability is on the battlefield. That’s why our new MOSFET has thermal protection. In tandem with a time-lag fuse, it fully protects your AEG installation.

12 on-off-activebrake

ON/OFF ACTIVE BRAKE

The Controller provides you with the opportunity to decide if you want to use the Active Brake function. If you do not need this, you can turn it off easily. It will lead to improving the lifespan of your motor.

13 activebrake

ACTIVE BRAKE

Do you care about realism? Would you like to increase the life of the gearbox? Does your rifle have such a high rate of fire that you are not able to make a single shot? The Active Brake sorts things out. In SEMI Mode, the brake does not allow for compressing a piston after a shot. The piston will stop in the front position which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts. This is important, especially with an AEG power upgrade. After releasing the trigger, the rifle immediately stops firing. So, you gain more realism and, additionally, you do not waste your precious ammunition.

14 mosfet

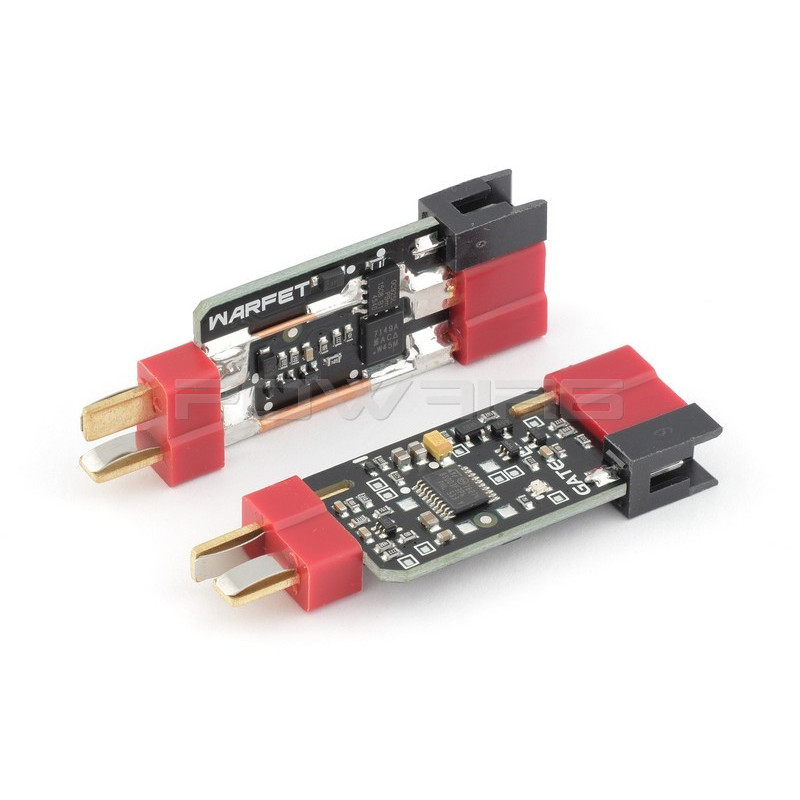

MOSFET

Do you want to achieve a higher rate of fire and faster trigger response? Are you planning a power upgrade of your rifle? In that case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher rate of fire of the rifle and a faster trigger response, and the contacts are protected against burn out.

15 debouncing

DEBOUNCING

This provides full compatibility with the micro-switches. It ensures full resistance to contact bounce (vibration). You gain a bigger ROF, a faster trigger response and your MOSFET is less prone to overheating.

16 built-in-self-test

BUILT-IN SELF-TEST

It allows you to quickly check whether the AEG Controller works properly. If you have problems with your AEG, the BUILT-IN SELF-TEST allows you to check that the problem is not caused by the Controller.

17 3rd-gen-mosfet

3RD GENERATION MOSFET

The advent of modern transistors and microcontroller has enabled us to create the smallest and most reliable AEG Controller on the market.

18 dark-mode

DARK MODE

DARK MODE allows you to turn off the green LED which lights up when a gun is firing. This function is especially useful during night games.

19 coating

COATING

Thanks to its special conformal coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C).

20 14-8-lipo-ready

14.8V LI-PO READY

The system can be used with batteries up to 14.8V LI-PO. Minimum operating voltage is 3V and maximum voltage is 17V.

21 hardwired

HARDWIRED

In the case of a hardwired installation, the Controller draws the power from the battery directly to the motor, bypassing the mechanical trigger contacts. This requires a modification of the AEG installation.

22 mini-tamiya-ready

MINI TAMIYA READY

Thanks to the Mini Tamiya Adapters included in kit, you will be able to smoothly connect AEG Control System to your original installation.

23 quickstart-guide

PRINTED QUICKSTART

It makes easier starting your adventure with a new product. The quickstart contains basic information and hints.

Questions  (8)

A partir de alain | 2023-11-01 00:50:27

bonjour peut il ce monter sur sr 25 cyma et serai ce vraiment un plus et faut il supprimer le fusible d origine ?

Powair6

bonjour, oui il se monte sur votre réplique. c'est un plus de part sa protection et les différentes fonctions, telle que les différents modes de tirs.
cordialement

A partir de benjamin | 2023-10-11 22:58:02

Bonjour y'a-t-il des modification à faire sur la gearbox pour pouvoir utiliser se mosfet ? Si oui lesquels ? Merci

Powair6

Bonjour;
non, aucune modification à prévoir. il s'installe simplement entre la connectique de votre réplique et votre batterie.
Cordialement.

A partir de Erwan | 2021-11-14 18:02:51

bonjour, est-ce qu'il s'agit bien du fameux mosfet que l'on retrouve dans le build que vous proposez à la vente dans une HK417 ?

cdt.

Powair6

Bonjour , oui c'est bien ce mosfet .

Cordialement,

A partir de Arper | 2021-05-22 23:01:52

Bonjour, compatible gearbox amoeba ? merci

Powair6

Bonjour , non ce n'est pas compatible .

Cordialement

A partir de Keitaro | 2021-05-01 12:50:08

C'est compatible sur une M14 Cyma ?

Powair6

Bonjour , oui il est parfaitement compatible .

Cordialement,

A partir de Sebastien | 2021-04-26 18:26:47

Bonjour.
Pourriez vous me dire si le warfet est compatible avec un Steyr Aug ?
Pour une installation complète
Merci à vous

Powair6

Bonjour , oui il est compatible , un recâblage complet sera nécessaire .

Cordialement ,

A partir de helmy | 2019-02-27 16:00:28

can confirm this mosfet is one price together with the programmable card?

thank you

Powair6

Hi, mosfet comes with programming card. Regards

A partir de Grégory C. | 2019-02-20 22:07:35

Quelle est la version de vos Warfet en stock ? je compte passé commande mais j'aimerais étre sure qu'il sagit bien des derniéres maj 1.1 merci

Powair6

Bonjour, Il s'agit de la dernière version 1.1. Cordialement
