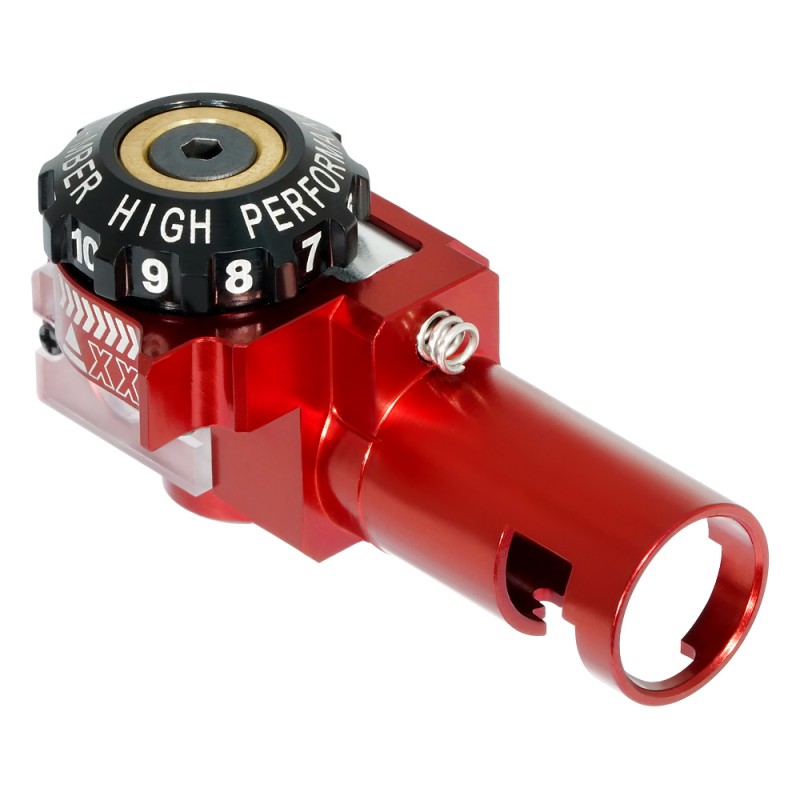

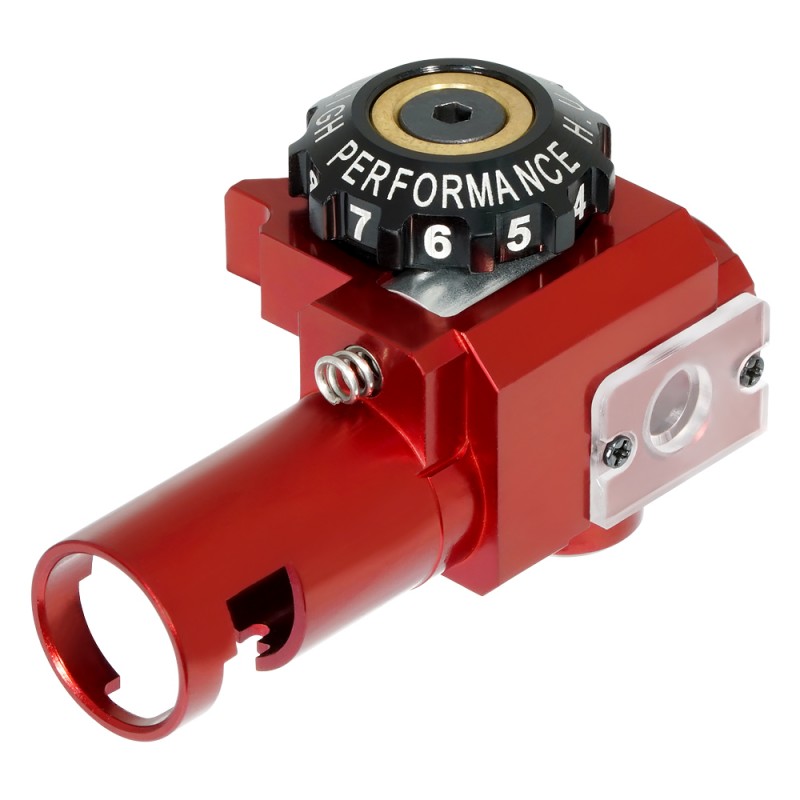

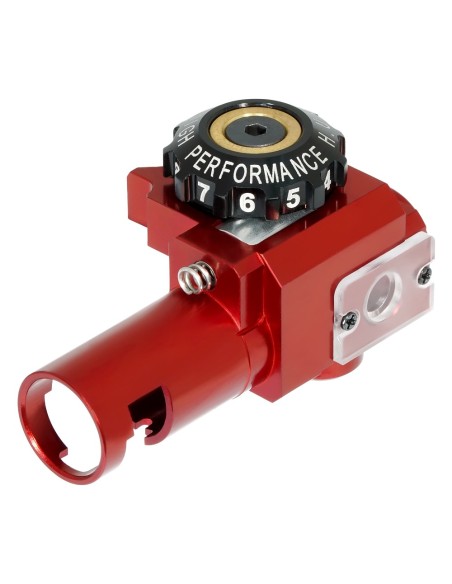

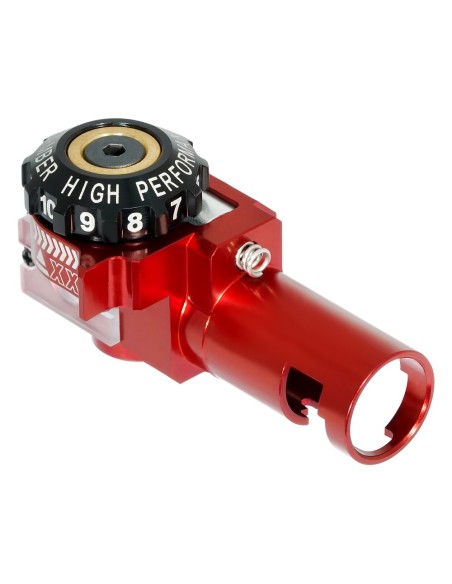

ConnexionCNC Aluminum Hopup Chamber EVO unit is precisely machined to perform accurately and consistently on the ASG CZ Scorpion EVO-3 Airsoft Rifles. The Hopup Chamber EVO unit is built with a Precision Aluminum Rotary Dial Knob for fine hopup adjustments and equipped with 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot. The Hopup Chamber EVO unit is designed to accept the 18.5mm nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use. The Hopup Chamber EVO unit is wisely built with a self-centering inlet to ensure the hopup unit is inserted exactly in the center of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling. Also included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.
***Test results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!

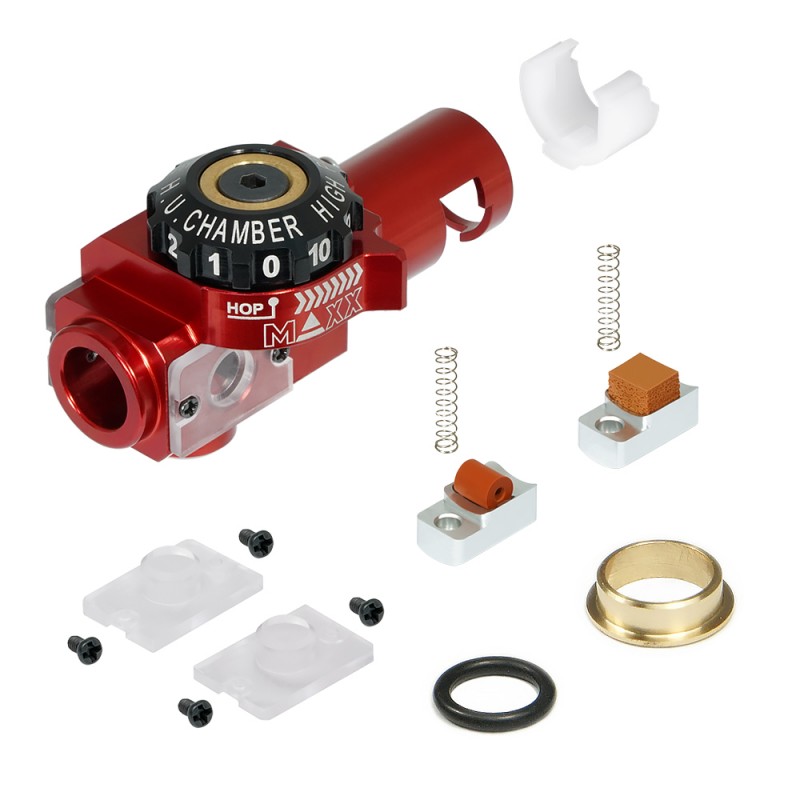

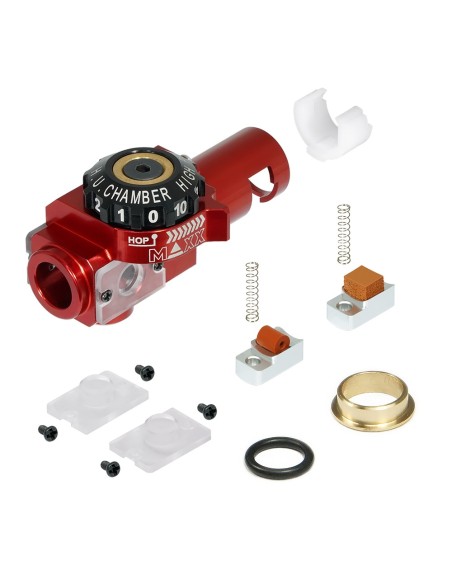

Includes | |
![]() | 1 x CNC Aluminum Hopup Chamber EVO unit |
![]() | 1 x Dual UV LED Boards and Module set (optional) |
![]() | 2 x Strong Clear Vinyl Cover set |
![]() | 1 x CNC Aluminum Soft Round Nub |
![]() | 1 x CNC Aluminum Soft Flat Nub (4mm) (Pre-installed) |
![]() | 2 x Steel Nub Spring |
![]() | 1 x Steel Compression Spring |
![]() | 1 x Brass Dial Bushing |
![]() | 1 x Dial O-ring |
![]() | 1 x CNC Precision Aluminum Rotary Dial Knob |
![]() | 1 x CNC Delrin Locking C-Clip |
![]() | 1 x CNC Brass Barrel Spacer |
![]() | 1 x Brass Barrel Spacer Holder O-ring |
Specification |
![]() | Overall Length: 47mm |
![]() | Overall Height: 26.25mm |
![]() | Inlet Diameter: 11.5mm |
![]() | Hub Outer Diameter (to fit into Outer Barrel): 12mm |
![]() | Hub Inner Diameter (to fit Nozzle): 7mm |
![]() | Material: Brass/Aluminum 6061 |
Features | |
![]() | Machined from a solid aircraft aluminum block with tight tolerances to achieve the most accuracy, consistency, and durability |
![]() | Performed accurately and consistently on the ASG 2018 CZ Scorpion EVO-3 Airsoft Rifles |
![]() | Built-in Precision Aluminum Rotary Dial Knob for fine hopup adjustments |
![]() | Pre-installed 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot |
![]() | Accepted the 18.5mm nozzle length |
![]() | Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use |
![]() | Wisely built with a self-centering inlet to ensure the hopup unit is inserted exactly in the center of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling |
![]() | Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting |
Compatibility | |
ASG 2018 CZ Scorpion EVO-3 AEG ASG 2018 CZ Scorpion EVO-3 HPA |
Requires | |
![]() | Wearing eye protection is recommended |
![]() | Use proper tools for disassembly and reassembly the gear box with great care due to spring tension |
![]() | Bearing lubricant oil/grease is recommended for smooth operation |
Instruction | |
![]() | Instruction Manuals are included |
Type | Scorpion |
Caliber | 6mm Airsoft |
Material | Aluminum |
Main color | Red |
Maxx Model is a Canadian brand that products, design, manufacture, and make high quality parts for Airsoft products.
Bonjour, pour accompagner ce bloc et un canon Prométhéus 6.03 x 501 mm, quel joint me conseillez vous ?
Bonjour, nous vous conseillons ou un maccaron ou un super maccaron en 60 degrés. Ce sont des valeurs sures.
Bonjour, est-ce que l'emplacement de la roulette de réglage a une incidence sur l'insertion de la batterie dans la réplique ?
Bonjour , non elle ne gêne pas l'insertion de la batterie .
Cordialement,
Ok, vous me conseillez quel joint hop UP, pour scorpion hPa?
Bonjour;
nous vous conseillons de partir sur un macaron ou super macaron en 60° de la marque Maple leaf pour un appui plat, ou un prometheus violet pour l'appui cylindrique.
Cordialement.
Bonjour, je sais que c est une nouveauté, mais pensez vous que c est mieux que celui fait par asg?
Bonjour;
nous avons une préférence pour les pattes d'appui proposé par celui-ci. Il offre un plus large choix de joint hop-up.
Cordialement.
