GATE TITAN II basic version Bluetooth for V2 GB HPA - Rear Wired


New product

In stock

Moyenne des votes pour ce produit
5.0 / 5
Moyenne : 5.0 / 5
Basée sur 2 avis clients.

116,58 € tax excl.

Si vous souhaitez enregistrer votre configuration, vous devez d'abord vous connecter.


More info

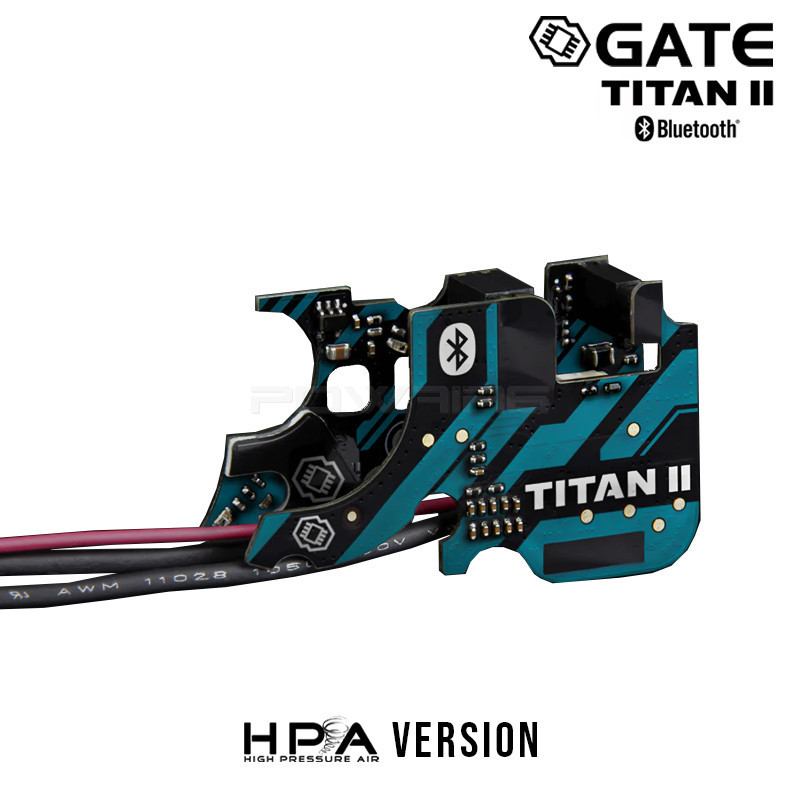

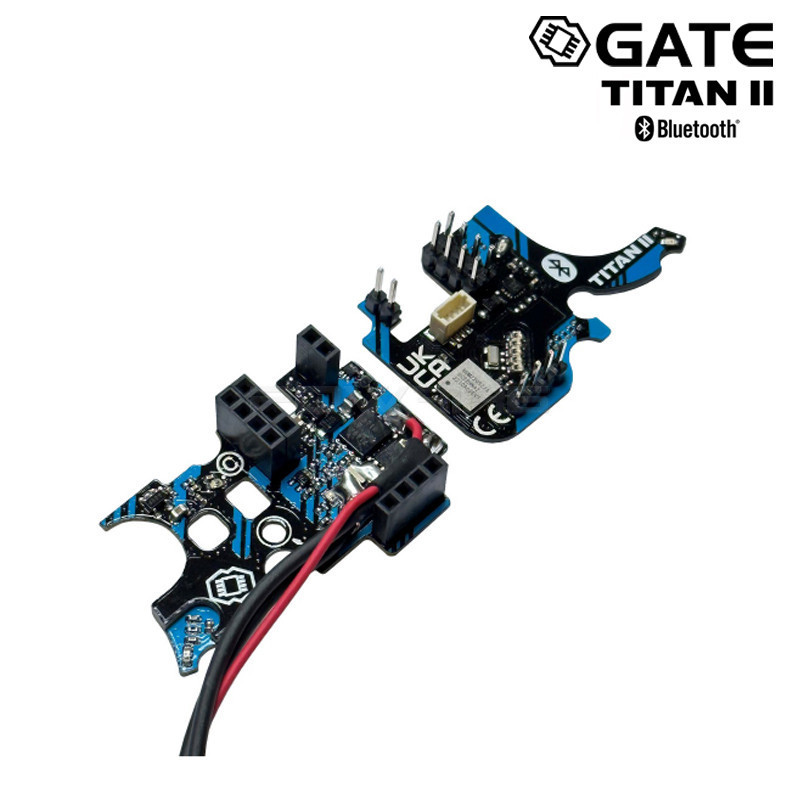

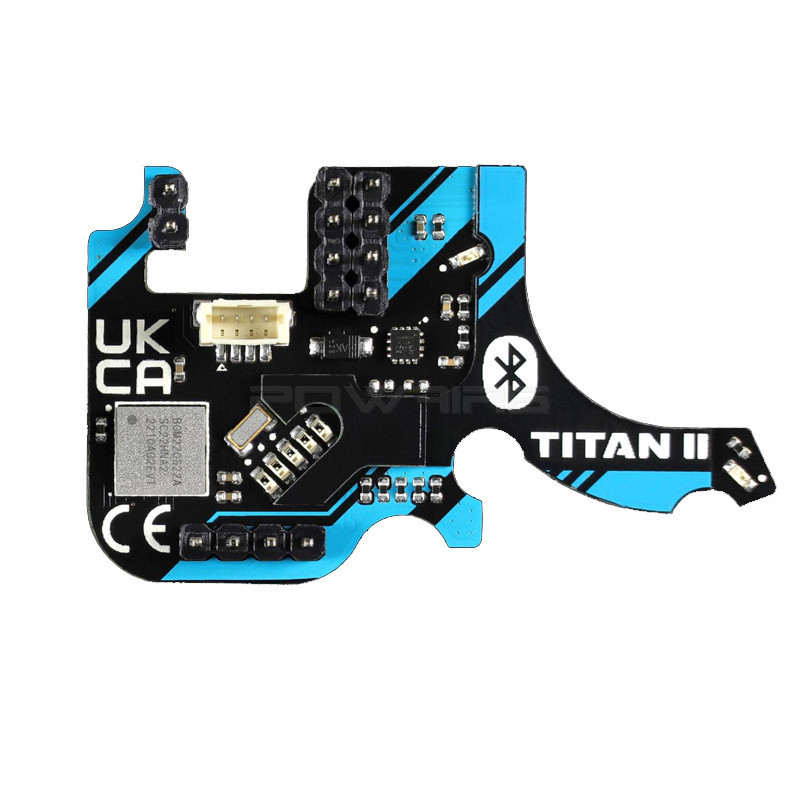

Brand new TITAN II Bluetooth® for V2 GB HPA - Basic version

This HPA version will allow you to connect 1 to 2 soleinoids, which makes it compatible with:

  • Polarstar Jack
  • Polarstar F2
  • Gate Pulsar
  • Wolverine Inferno gen II
  • Wolverine Reaper gen II electro-pneumatic version
  • Wolverine Hydra
  • Redline N7 electro-pneumatic version

Built-in Bluetooth 5.2 technology gives you direct access to TITAN settings, AEG telemetry and ability to use smartwatch, STATUS and other future devices of GATE Ecosystem. Innovative gear sensor not only counts gears, but also as first in the world determines the direction of a gear rotation, offering you the most precise cycle control in AEGs. Mind-blowing optical trigger sensor allows you for setting hair trigger with ludicrous precision: 50 sensitivity levels for the first millimetre of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, tracer in hop-up chamber and others.

What makes TITAN II Bluetooth® so special?

  • Mind-blowing trigger sensor with the TITAN V2 sensor advantages and ability to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement
  • Brand new patented gear sensor, as first in the world, detects each tooth and the direction of gear movement what allows for extremely precise cycle control
  • Mechanical protection of trigger sensors increases reliability. A potential trigger sensors' damage is now covered by the warranty.
  • Ultra-precise telemetry measurements thanks to the new current sensor
  • Pre-cocking can be set in %
  • Built-in voltage boost converter. Trouble-free operation in low temperatures
  • Multifunctional programmable port ready for connecting:
  • Hop-up chamber to tracer and sensors
  • Bolt-catch button
  • HPA Engine (Single solenoid, dual solenoid engine you need an additional cable ,accessory sold separately)
  • Electric Magazine
  • Magazine sensor
  • Flashlight

User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS

TITAN II can be connected with smartwatch out-of-the-box
Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer

Lowest in the market current consumption. Deep sleep mode with only 0.1 mA current consumption prevents battery discharge (3x lower consumption than in current ETUs, which already had the lowest current consumption on the market).

Multifunctional port:

  • 2x I/O port
  • UART / I2C communication
  • Programmable power supply with eFuse
  • Current: max 5.4A peak and 1.5A constant current
  • Voltage: same as battery voltage


Compatible accesories :

  • Power supply cable (GEL BLASTER / Electric Magazine / Tracer)
  • Cable for single solenoid HPA
  • Cables for dual solenoid HPA
  • Divider ready for connecting many accessories (you can connect 1x power supply cable and 2x I/O cable)
  • Universal I/O cable for max. 2 DIY accessories (Bolt-catch, Magazine sensor, Flashlight)
  • Bolt-catch with button and cable (ready to connect)
  • Magazine sensor with cable (ready to connect)

The kit contains:

  • 1 x TITAN II Bluetooth Mosfet - JST

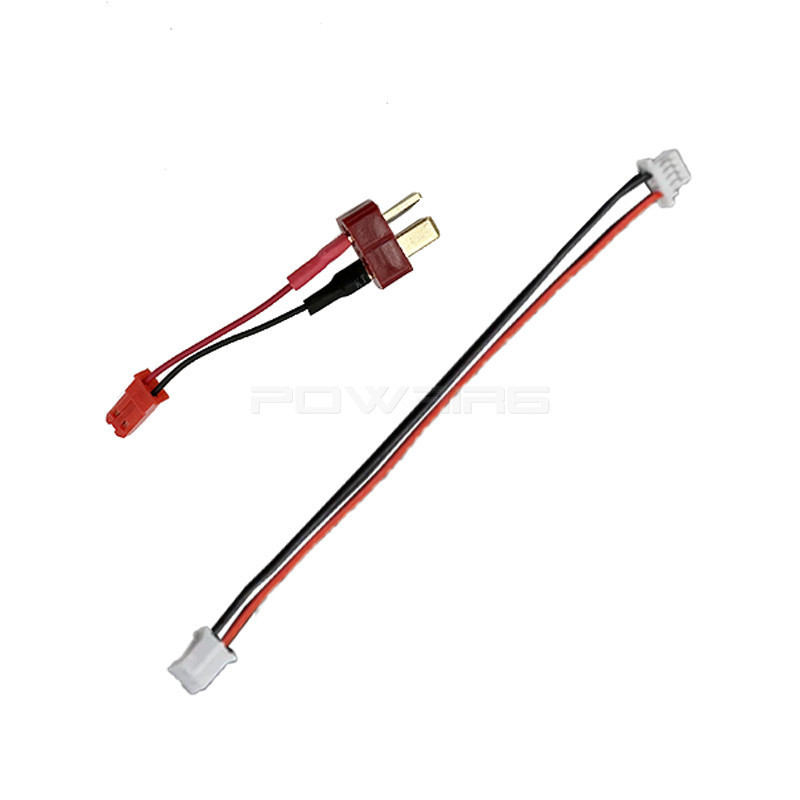

  • 1 x JST to T-dean conversion cable
  • 1 x cable to connect 1 additional soleinoid
  • 1 x installation kit
  • 1 x patch Gate Titan II


The version of the TITAN II Gate HPA mosfet cannot be converted to a version working in AEG.

Data sheet

Integrated MosfetTitan
Trigger SystemElectronic
Battery ConnectorJST

Questions  (12)

A partir de David | 2023-09-28 12:44:36

bonjour a vous je voudrai savoir si il y a des modifaction a faire pour un polar f2 merci a vous


non pas de modifications requises.

A partir de Jürgen | 2023-06-28 08:02:34

Is the Titan plug and play with the Wolverin Inferno gen2 Spartan?


yes it will be compatible.
Best regards.

A partir de Nils | 2023-06-12 12:03:28

Does it also work with the wolverine Inferno gen 1?


no it will not be compatible.
Best regards.

A partir de bjarke | 2023-06-01 21:16:02

does the contain all the cables I need for my f2 to work, or will i require to buy more cables for the duel solenoid system.

if so can link the product i need


Good morning;
yes there will be all the necessary wiring for your F2.
Best regards.

A partir de tristan | 2023-04-18 08:11:48

J’ai acheter un kit hpa wolverine inferno gen2 spartan édition est-ce que ce Mosfet sera compatible ?


oui il sera compatible.

A partir de Kevin | 2023-04-16 11:59:55

Bonjour j’ai acheté le titan 2 hpa coupler avec un polarstar f2 je n’arrive pas à régler les temps de vannes je pense j’ai une grosse consommation d’aire je suis en canon 6,20 263 mm
Ci vous avez un réglage à me proposer je vous remercie d’avance


n'hésitez pas au nous contacter par téléphone et demander Nicolas pour voir les paramètres que vous utiliser et ce qui serons le plus adaptés.

A partir de Mario | 2023-03-25 12:22:52

i see it is compatible with Wolverine Inferno GEN2, but which firmware version does it come with (BASIC, ADVANCED or EXPERT)?
Many thanks and kind regards,


Good morning;
this is the basic version.
Best regards.

A partir de valentin | 2023-03-01 16:29:36


Compatible avec le polarstar f1?


oui il sera compatible.

A partir de Anthony | 2023-02-07 07:23:35

Bonjour est t’il compatible avec wolverine inferno gen2 spartan merci


oui il sera compatible.

A partir de Luis Sergio | 2023-02-05 14:52:18

J'ai une question, j'ai un MTW de chez Wolverine (Inferno 2).
Cela remplace le board d'origine?
Peut on programmer le solenoid?
Est ce facile a installer?


il ne sera pas possible de l'installer dans votre réplique.
