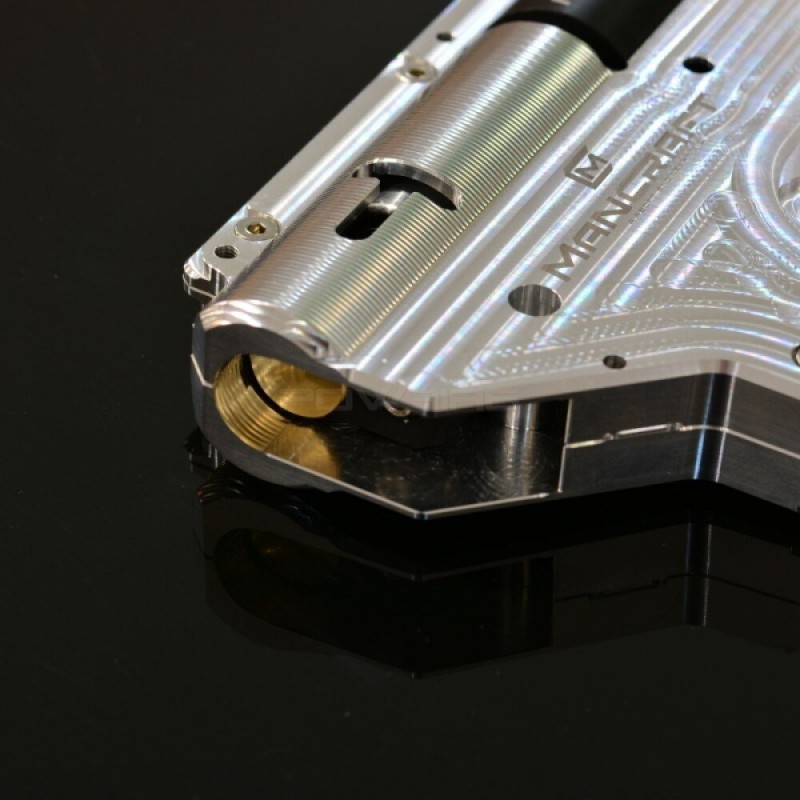

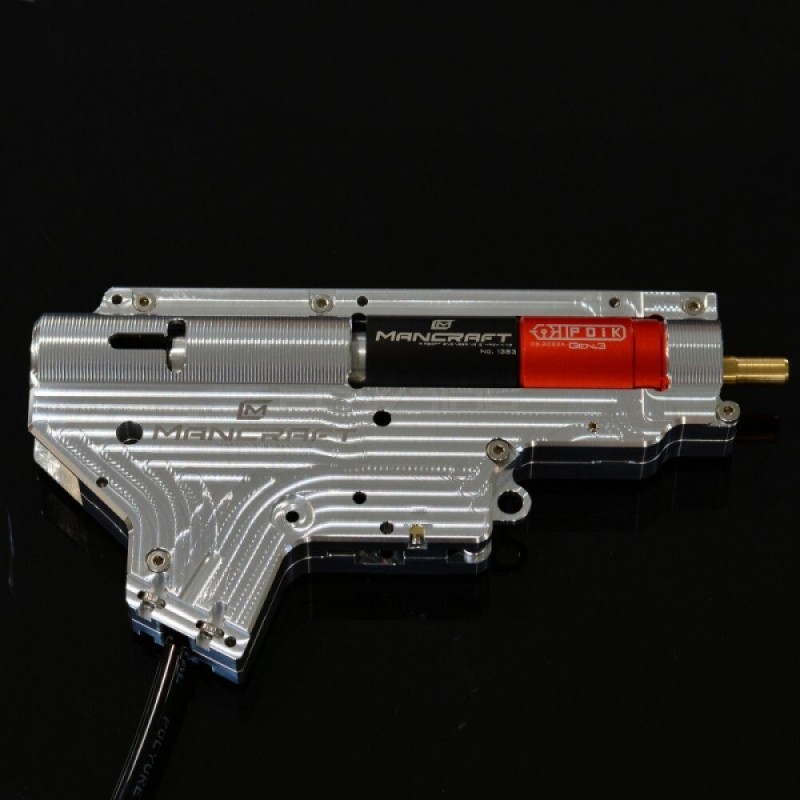

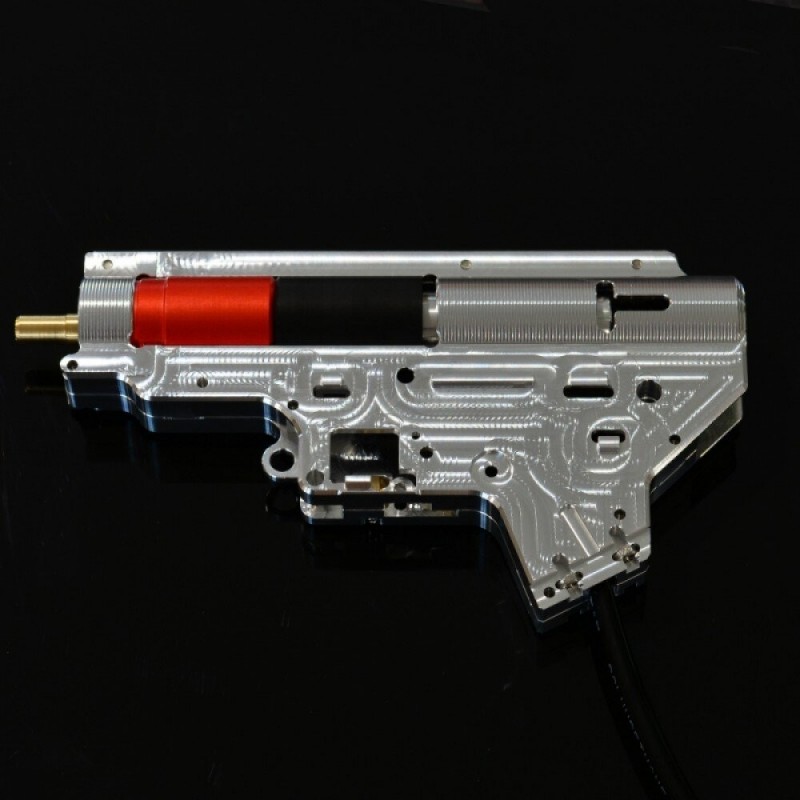

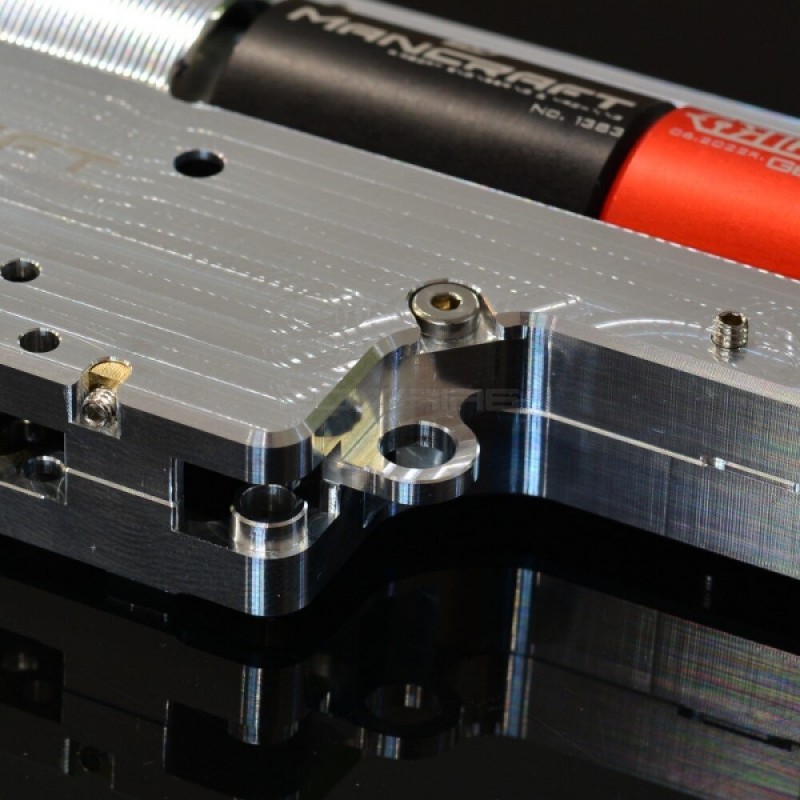

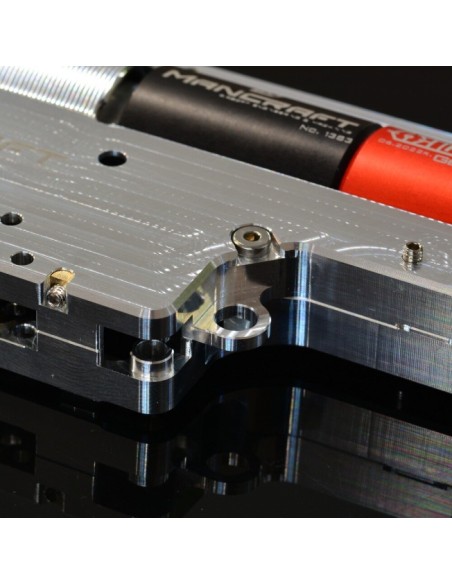

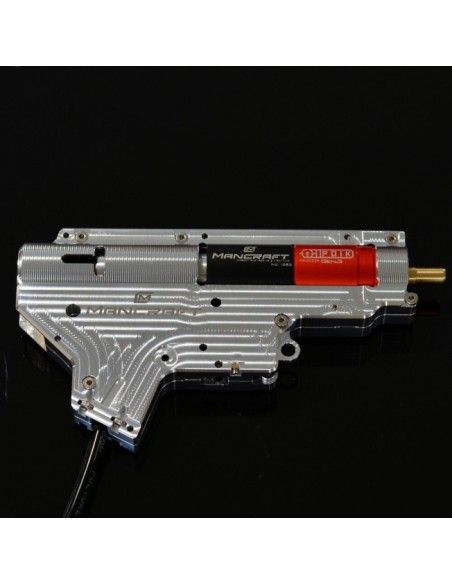

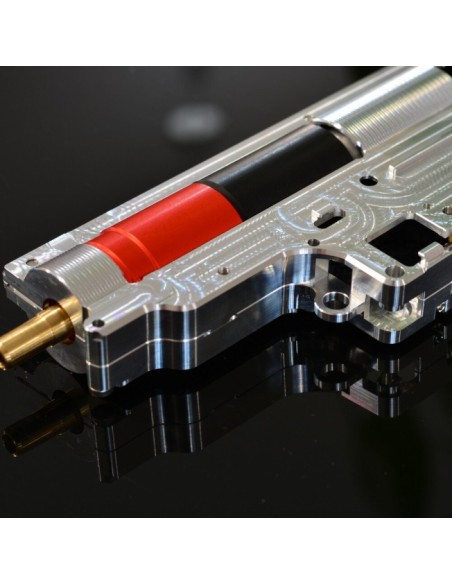

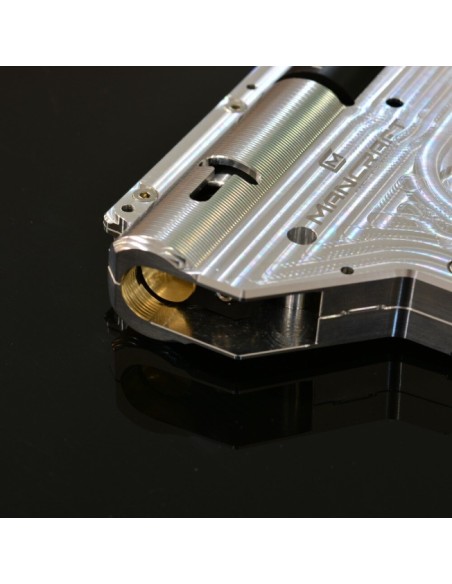

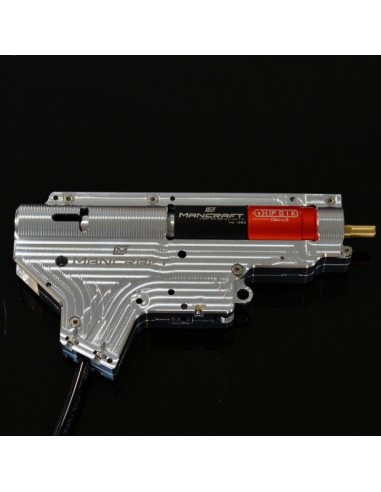

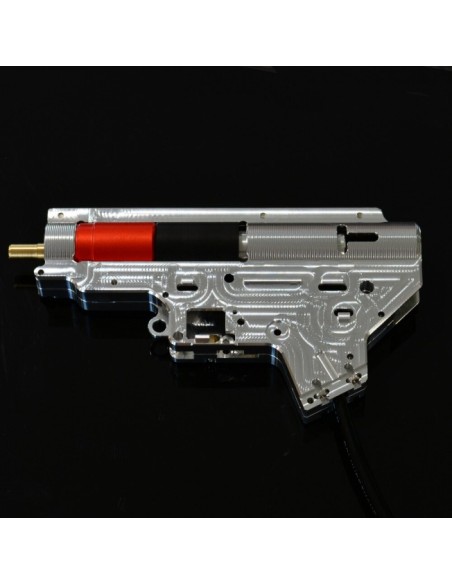

Mancraft PDIK GEN3 V2 (with gearbox shell)

MC0195.154

New product

In stock

Average votes for this product
5.0 / 5
Average: 5.0 / 5
Based on 2 customers advices.

241,58 € tax excl.

More info

Conversion kit was developed with the aim of sniper rifles - where is the need for long range and precision shot.

Use AEG nozzle ! So can be used in many replica using the gearbox V2 system and changing for the right aeg nozzle.

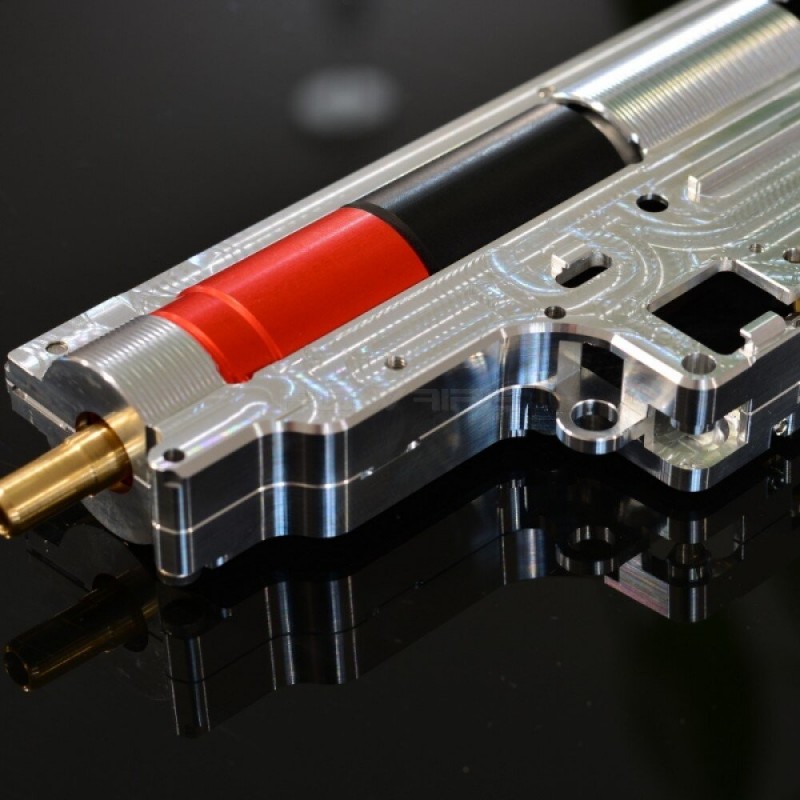

Conversion has independently movable nozzle - just like in the AEG rifles. Location of Nozzle is not directly linked to the location of the gas supply element. This solution makes that - when conversion taking a shot, nozzle (when the gas starts to move towards the ball) is stationary in the Hop Up chamber. Because of that, here is the better focus and precision of shot.

This type of nozzle has a great advantage - arranged axially relative to the eraser Hop Up. This solution makes the rubber is less worn and usually are better sealed with. PDiK works in semi-auto mode. This is the only available mode in conversion kit. The conversion is largely adapted to the needs of the sniper. Since it is possible here to get quite high fps - auto mode does not occur. When using the appropriate regulator, it is possible to obtain a very stable, high fps. Power is adjusted by the regulator. Operational pressure is in the range 7-16bar.

  • No electronics (resistance to weather conditions), No batteries
  • Precision of the FPS
  • Semi only, No full auto mode
  • Adjustable FPS
  • Compatible with standard AEG parts (nozzle, trigger, selector plate)
  • Use AEG nozzle ! So can be used in a V2 system gearbox using the right aeg nozzle
  • External power (many shots)
  • Immediate response to the trigger
  • New generation trigger valve

Set includes:

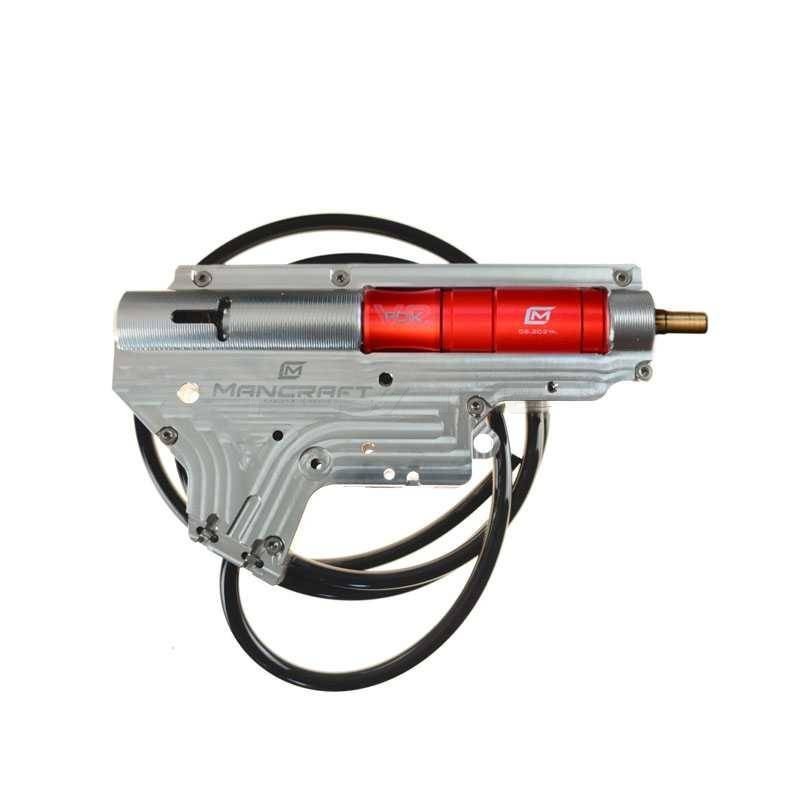

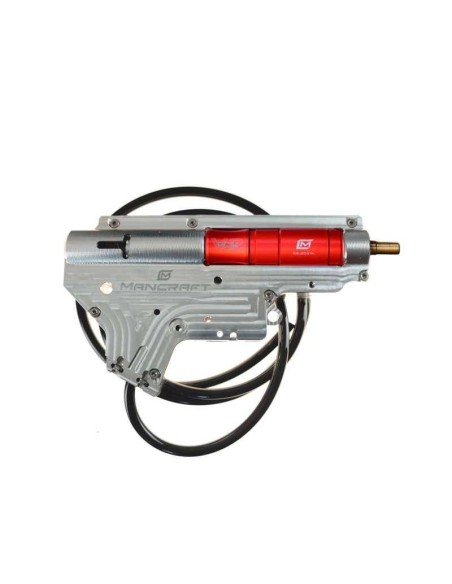

  • PDiK V2 gen3 with Gearbox Shell V2 fitted
  • About 1.2m supply hose (fi 6mm)
  • Spring guide replacement housing

The kit does not include:

  • Trigger
  • Trigger lock
  • Selector plate

Data sheet

TypeM4
HPA SystemMANCRAFT PDIK
MaterialAluminum
Firing modeSemi automatic
Power sourceHPA
GearboxV2
HPA Fitting type6mm hose
PackagingSingle Product

Accessories

Questions  (3)

From B. maxime | 2021-03-07 18:41:45

Bonjour
Est ce que ce bloc hpa est compatible avec une vfc vr16 saber carabine ?

Merci

administrator

oui c'est compatible, mais privilégiez la version sans coques gearbox si vous avez déjà du VFC

From James B | 2021-03-01 05:21:06

j'ai plusieurs répliques en attente de transformation vers HPA pourriez vous me dire (dans la mesure du possible) si le kit est compatible avec :

- Amoeba M4 CCR-S AM-005
- Amoeba Pro M4 KM15

De votre côté quel kit recommandez vous pour ces répliques
(sachant que je suis équipé pour réaliser les modifications internes à la gearbox pour accueillir le kit)

administrator

Vos répliques ne sont pas au standard Marui niveau gearbox, donc ce ne sera pas compatible avec le PDIK gen3.

Pour l'Amoeba M4 CCR-S AM-005 : Fusion Engine (prévoir quelques modifs sur le corps)

Amoeba Pro M4 KM15 : non recommandé pour le passage en HPA.

Cdt

From olivier c | 2021-02-12 23:38:33

Bonjour j'aimerais savoir si le raccordement et type US ou EUR

administrator

Les caractéristiques produit indiquent que la sortie finale du produit est un tube de 6 mm, il n'y a donc pas de connecteur de type US ou EU livré avec. Ces connecteurs pour souvent compris dans les lignes hPa comme les balistiK. Cdt
