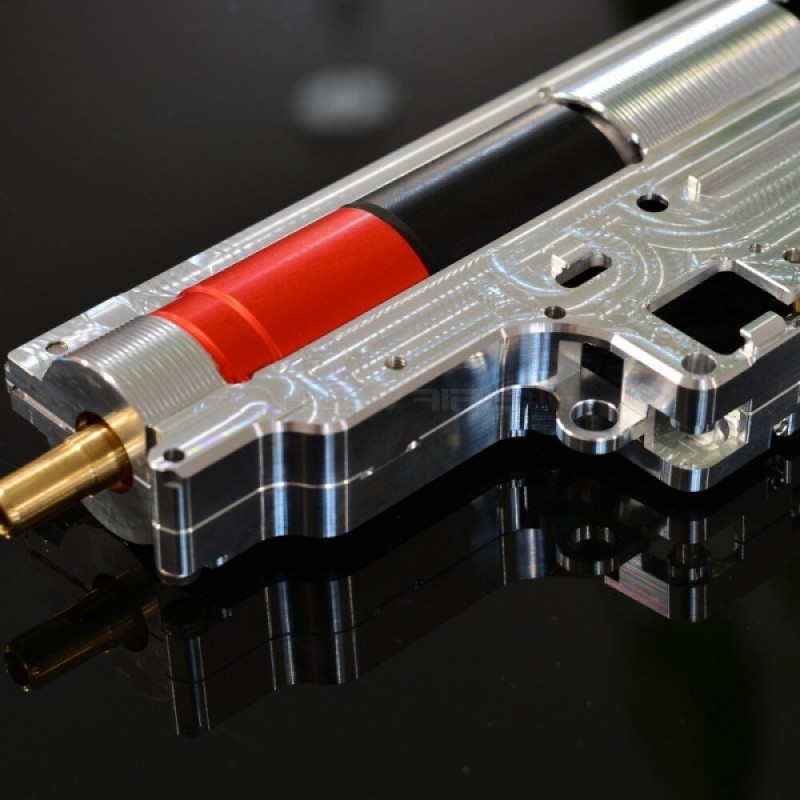

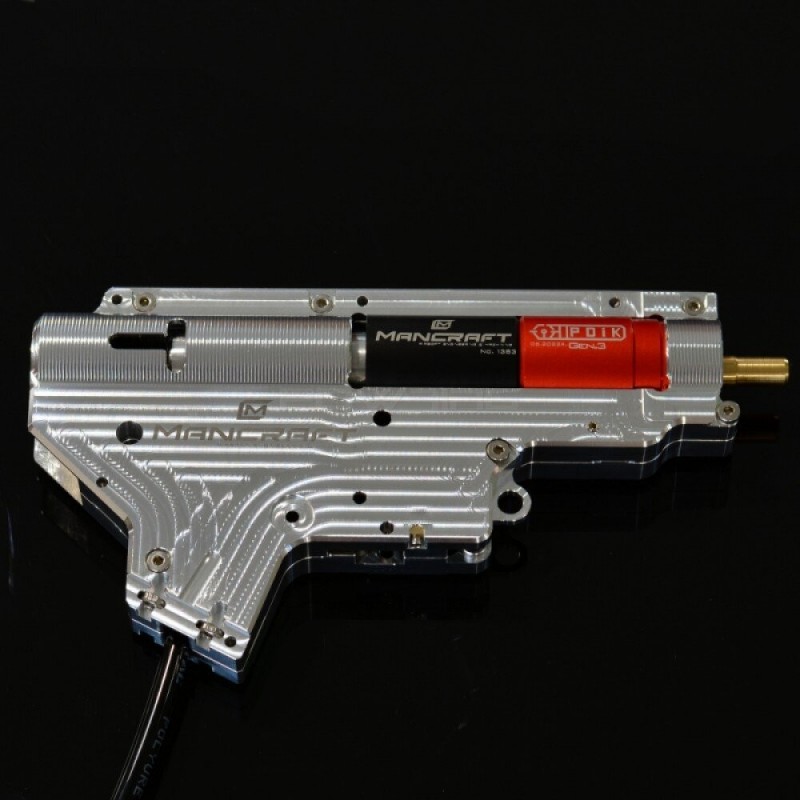

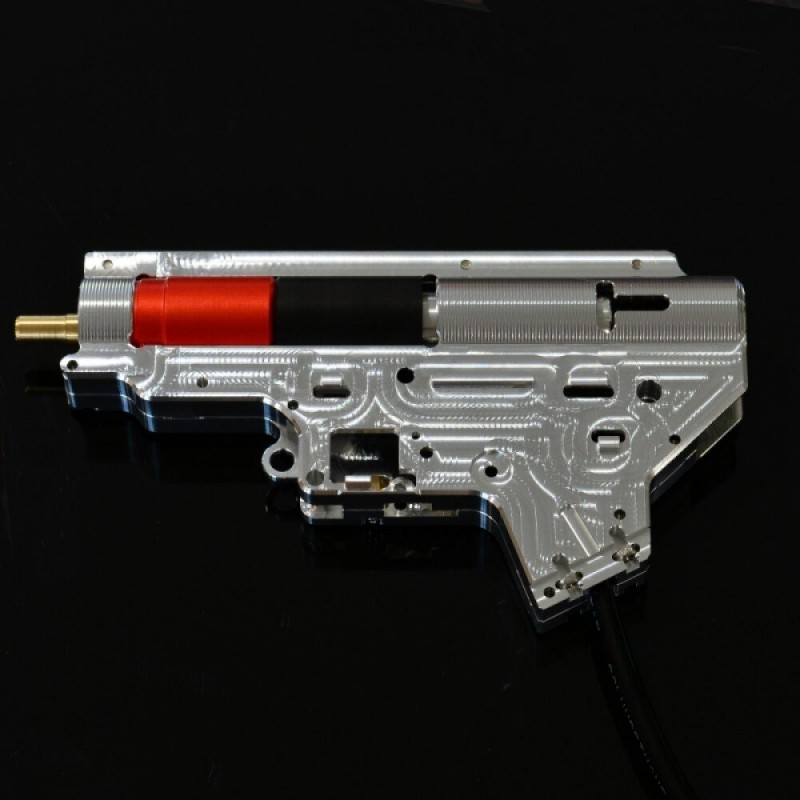

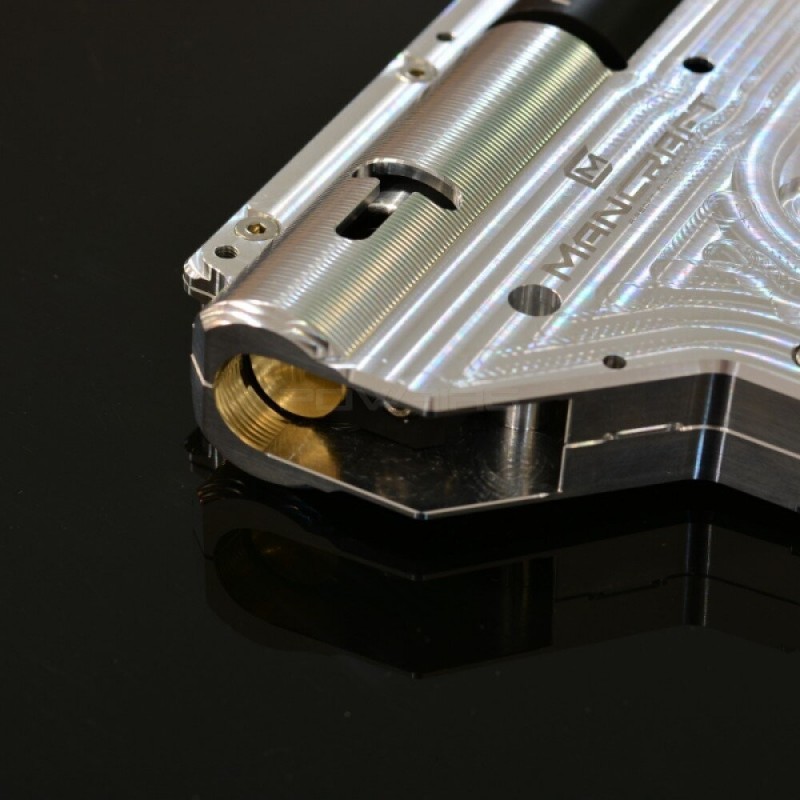

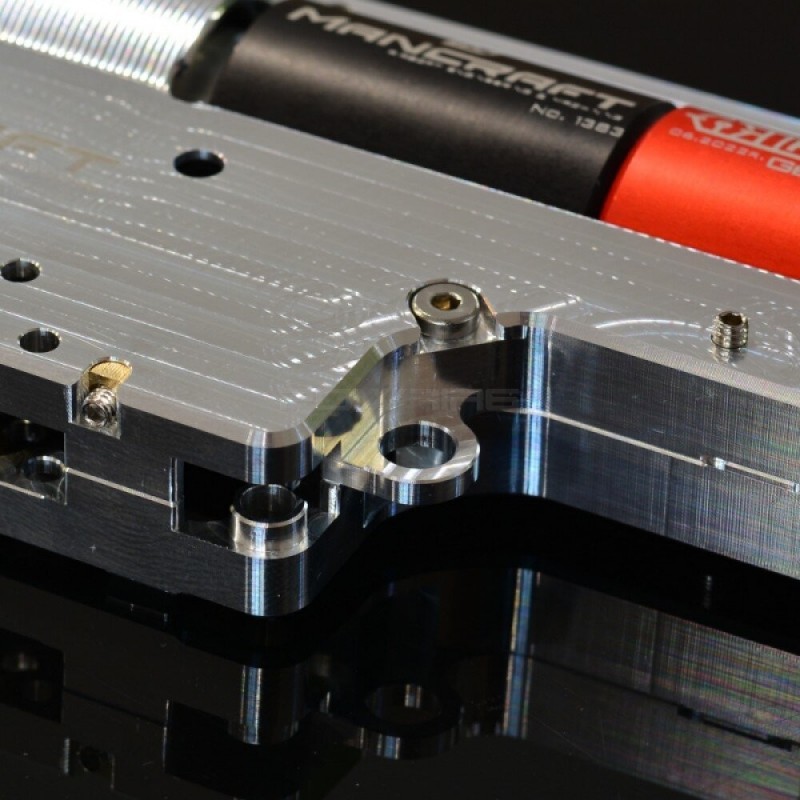

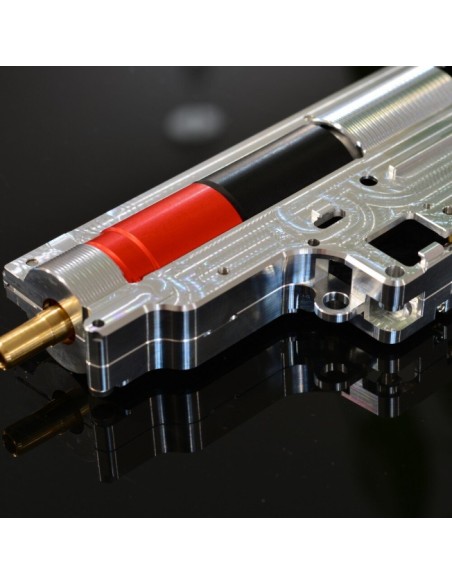

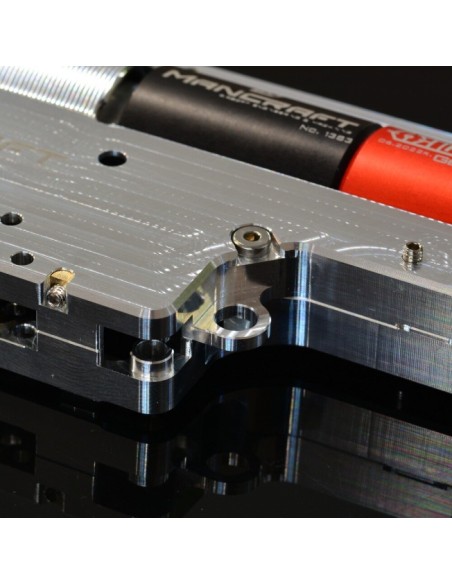

Mancraft PDIK GEN3 V2 Long (with gearbox shell)

MC0195.156
Out-of-Stock
€289.90


FAST SHIPPING

REAL TIME STOCK

SECURE PAYMENT

If you want to save you customization, you have to be a registrered user

Login

Description

Conversion kit was developed with the aim of sniper rifles - where is the need for long range and precision shot.

Use AEG nozzle ! So can be used in many replica using the gearbox V2 long (SR25, SCAR-H, etc ...) and changing for the right nozzle

Mechanics:

Conversion has independently movable nozzle - just like in the AEG rifles. Location of Nozzle is not directly linked to the location of the gas supply element. This solution makes that - when conversion taking a shot, nozzle (when the gas starts to move towards the ball) is stationary in the Hop Up chamber. Because of that, here is the better focus and precision of shot.

This type of nozzle has a great advantage - arranged axially relative to the eraser Hop Up. This solution makes the rubber is less worn and usually are better sealed with. PDiK works in semi-auto mode. This is the only available mode in conversion kit. The conversion is largely adapted to the needs of the sniper. Since it is possible here to get quite high fps - auto mode does not occur. When using the appropriate regulator, it is possible to obtain a very stable, high fps. Power is adjusted by the regulator. Operational pressure is in the range 7-16bar.

  • No electronics (resistance to weather conditions), No batteries
  • Precision of the FPS
  • Semi only, No full auto mode
  • Adjustable FPS
  • Compatible with standard AEG parts (nozzle, trigger, selector plate),
  • Use AEG nozzle ! So can be used in a V2 Long system gearbox using the right aeg nozzle
  • External power (many shots)
  • Immediate response to the trigger
  • New generation trigger valve

Set includes:

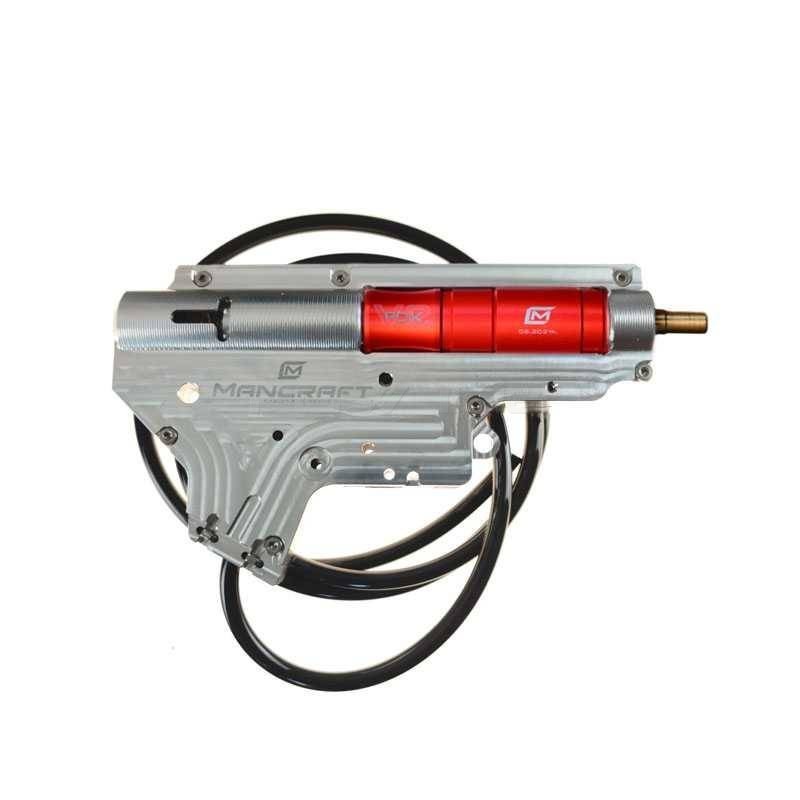

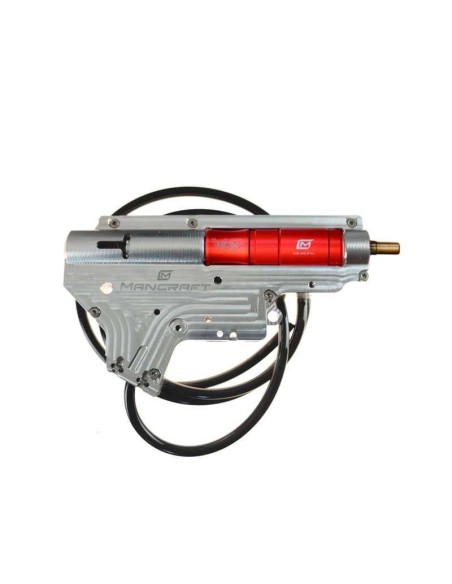

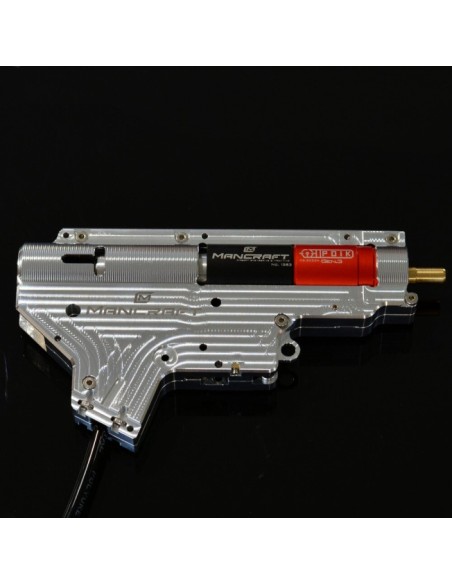

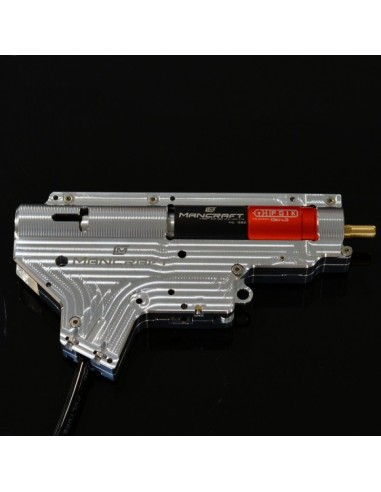

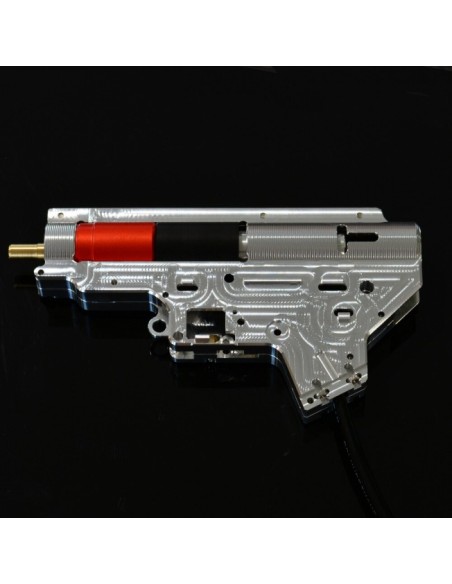

  • PDiK V2 LONG GEN3 with Gearbox Shell V2 long fitted
  • About 1.2m supply hose (fi 6mm)
  • Spring guide replacement housing

The kit does not include:

  • Trigger
  • Trigger lock
  • Selector plate

Product Details

Type
SR25
HPA System
MANCRAFT PDIK
Material
Aluminum
Firing mode
Semi automatic
Power source
HPA
Gearbox
V2
HPA Fitting type
6mm hose
Packaging
Single Product

Reviews

Only registered users can post a review. Log in or create an account .
07/03/2025
Xavier M.
attention
pas 100% compatible sr25 AK il faut travailler la partie AR de la réplique au niveau de la descente vers la poignée

You might also like

Mancraft PDIK GEN3 V2 Long (with gearbox shell)
Mancraft PDIK GEN3 V2 Long (with gearbox shell)
€289.90

    Questions (5)

    From Urbino | 2023-10-24 19:18:37

    Bonne nuit. le Mancraft PDIK GEN3 V2 Long (avec coque de boîte de vitesses), est compatible avec le SR25 A&K.

    administrator

    Bonjour;
    oui elle sera compatible.
    Cordialement.

    From Nicko | 2023-10-03 22:16:55

    Hello. Is this compatible with the cyma sr25 receiver?

    administrator

    Hello,
    yes it will be compatible.
    Best regards.

    From Anthony | 2023-09-09 15:07:17

    Bonjour j'ai une m110 de cher cima avec le changement de ressort rapide se produit serait compatible ?

    administrator

    Bonjour;
    oui il sera compatible.
    Cordialement.

    From vincent | 2022-09-13 22:00:18

    Bonsoir, ce système est-il compatible pour un sr25 de marque G&G ?

    administrator

    Bonjour , non il n'est pas compatible .

    Cordialement,

    From Thomas | 2021-05-23 15:06:01

    Does this hpa setup also fit in the G28 gearbox or do you have to use a different hpa setup

    administrator

    Hello, the G28 / HK417 gearbox does not allow the installation of a mechanical hpa kit. It requires a dedicated electro-pneumatic version (Polarstar F2 or F1).

    Best Regards,
