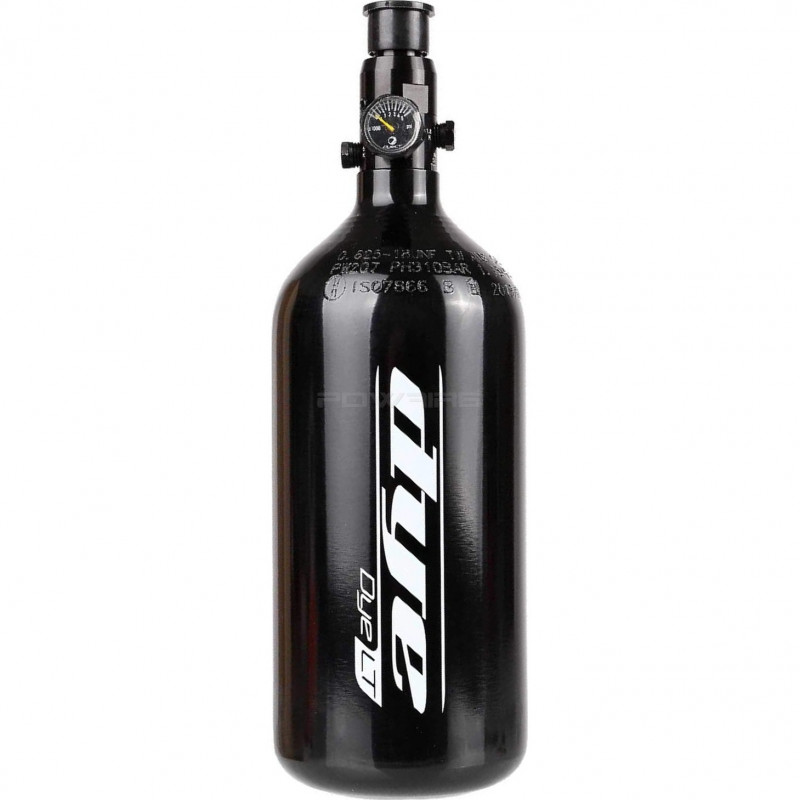

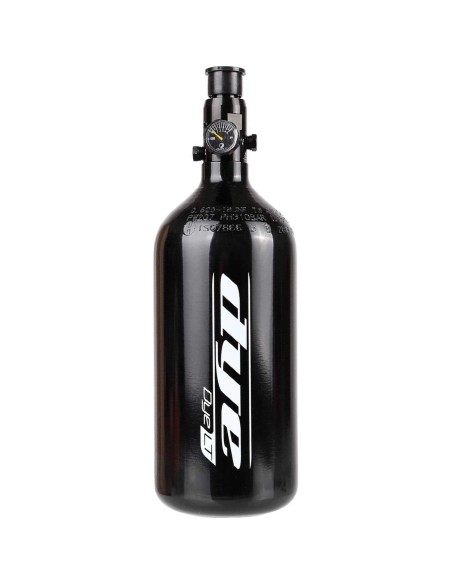

The Dye Proto airpack include :
|External Diameter (mm)||90mm|
|Tank type||0.8L 3000PSI|
|Output pressure||800 PSI HP|
|PI approved regulator||yes|
|PI approved tank||yes|
- Keep the thread and inside of your tank away from oil, dirt or other contaminants.
- Make sure your tank has not passed the re-test date. Bottles must be inspected and hydrostatically tested as follows: Aluminum tank : every 10 years. Composite tank : every 5 years (composite bottles have a maximum life of 15 years from the first hydrostatic test)
- Keep the outside of your bottle clean and use only mild or neutral detergent when necessary. Make sure the bottle is completely dry after cleaning.
- Store in a dry, cool and adequately ventilated place.
- Have your bottle serviced by a qualified person only.
- Make sure all accessories in the bottle are serviced, reviewed, inspected and handled in strict accordance with the manufacturer's instructions.
- Have the cylinder checked or hydrostatically retested if it shows signs of corrosion, holes or dents, if it has been damaged by heat, a fall, or other.
- Make sure there is no leak before each job. In the event that a leak is detected, the tank must not be refilled under any circumstances.
- Check that the cylinder to be filled with air has a working pressure (PW) engraved on the crown (for all aluminum bottles) or printed on the label (for all composite bottles) which should not be exceeded by the filling apparatus. Fill compressed air to less than 40 bar (600 psi) per minute at the service pressure (PW) indicated on the cylinder.
You can find the EU legislation on compressed air containers on the website of the French federation of Paintball.
- Modify or darken the markings on the bottle.
- Let your bottle roll during your travels.
- Drop, knock or heat your bottle.
- Expose your bottle to excessive heat (> 50 ° C).
- Attempt to change the thread or force a valve inside the bottle.
- Attempt to remove metal from the bottle by any means, as this will render the cylinder unsuitable for its nominal pressure.
- Modify your bottle by adding additional openings for gauges or filling tips.
- Repaint the bottle with paints that require high temperature cooking. Only use air-drying paints. Do not use caustic paint strippers or corrosive cleaners as they will damage the bottle.
- Use the bottle for something other than its intended use.
- Request that the bottle be filled beyond its nominal capacity. An overflow is dangerous.
- Use or have your bottle filled if it leaks or if you suspect it is damaged. In this case, refer the bottle to an authorized specialist for a detailed visual inspection.
- Fill a bottle that has exceeded its date of inspection and periodic retest.
- Change your bottle in any way or add unauthorized accessories. Unauthorized modifications are illegal and could make the bottle unsafe.
- Never fill a bottle of compressed air with Co2, you would put yourself in serious danger.
Does the tank comes with the nipple ? Or you need to buy one and fit it in ?
Hello, the bottle is sold with the valve needed for filling.
Systeme AIR complet HPA 1.5L noir version US est il compatible avec les valves a visser AAC ou fzut il ajouter un adaotateur pour quick detache. Lerci a vous
Bonjour , si vous prenez un système complet US il vous faut prendre des Valves AAC US version . Vous n'aurez pas besoin d'adaptateurs supplémentaires .
Compatible avec flexible balystik tippmann ? Pour m4 carbine tippmann v1
Bonjour oui c'est compatible .
