Wolverine Inferno GEN2 M4 with T238 Meteor FCU

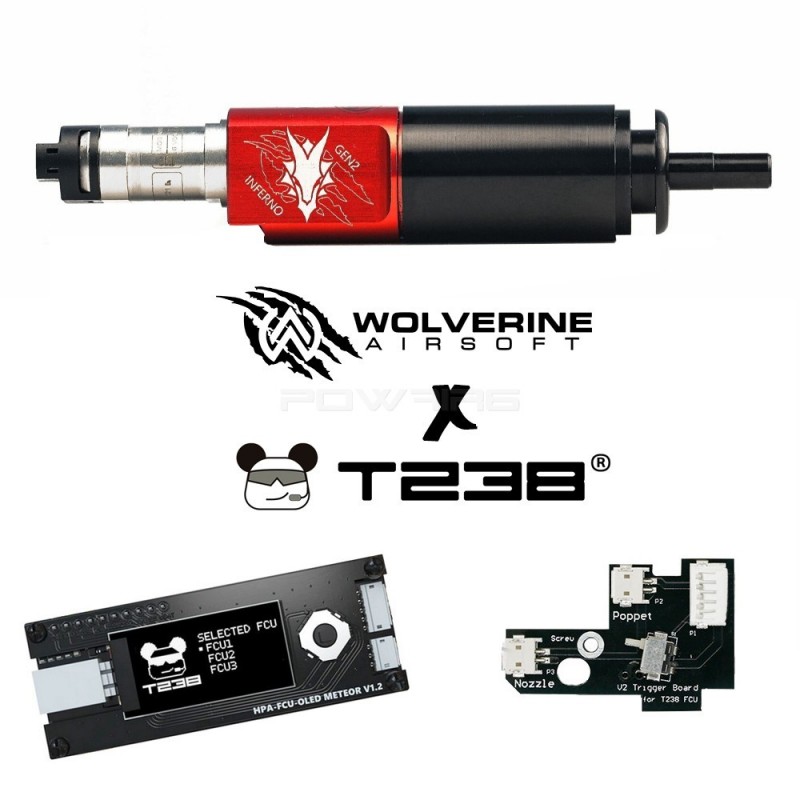

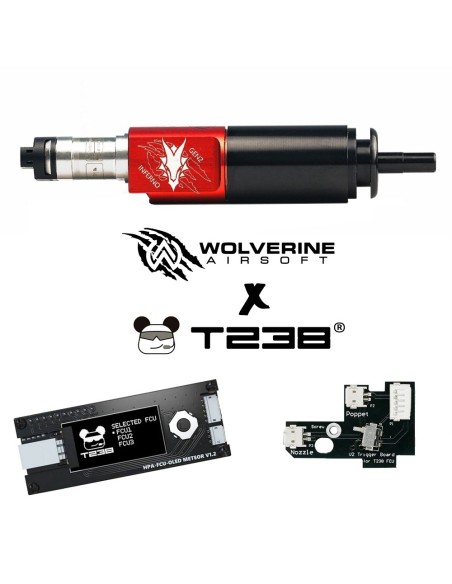

Our workshop has prepared a special HPA kit with a Wolverine Inferno GEN2 system coupled with the latest T238 LED FCU. It includes:

• Inferno GEN2 M4 Wolverine HPA system

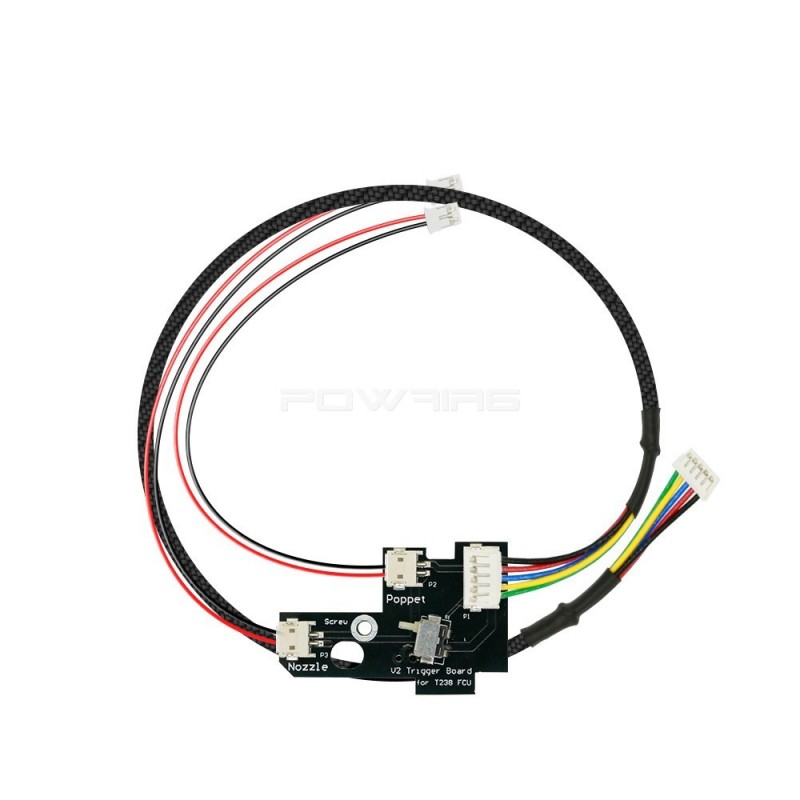

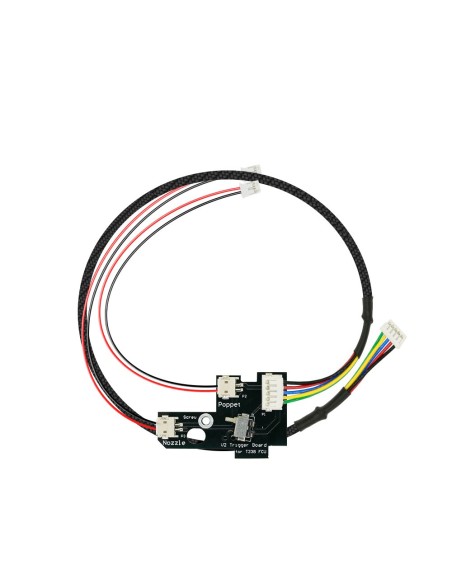

• T238 V2 trigger board
• T238 Meteor FCU

It is pre-programmed for the Wolverine Inferno system during kit preparation. All wires are plug and play, with nothing to solder during installation.

GEN 2 Inferno :

It is the culmination of a great deal of work to take the next step forward in the development of HPA technology. Over the past couple years since we launched the SMP, multiple other companies saw the value of this type of technology and have attempted to replicate its performance. The Gen2 once again leaves everyone far behind. The GEN 2 Inferno features a revolutionary single solenoid, independent poppet and nozzle design that sets a new standard for a drop in kit. Particularly, it is designed to solve the "open bolt problem". It is a hybrid design which keeps the advantages of an open bolt system: easy tuning, no first round dry fire, efficiency, and adds the simplicity of easier hop up tuning that closed bolt systems have traditionally offered. In addition, it further improves the efficiency over our previous systems by an estimated 10-15%. Here are a few highlights!
Features:

• Patent Pending independent poppet and nozzle design
• Hybrid design allows pause between bb loading and bb firing
• Improves hop up performance with a wide range of stock and aftermarket options
• Still uses Wolverine Airsoft`s Patent Pending Imbalanced Poppet
• Backwards compatible with all Wolverine Airsoft electronics.
• Still uses bullet proof direct solenoid fired design
• NO ADDITIONAL CRITICAL ORINGS--> No negative impact on reliability!
• Estimated 10-15% efficiency improvement

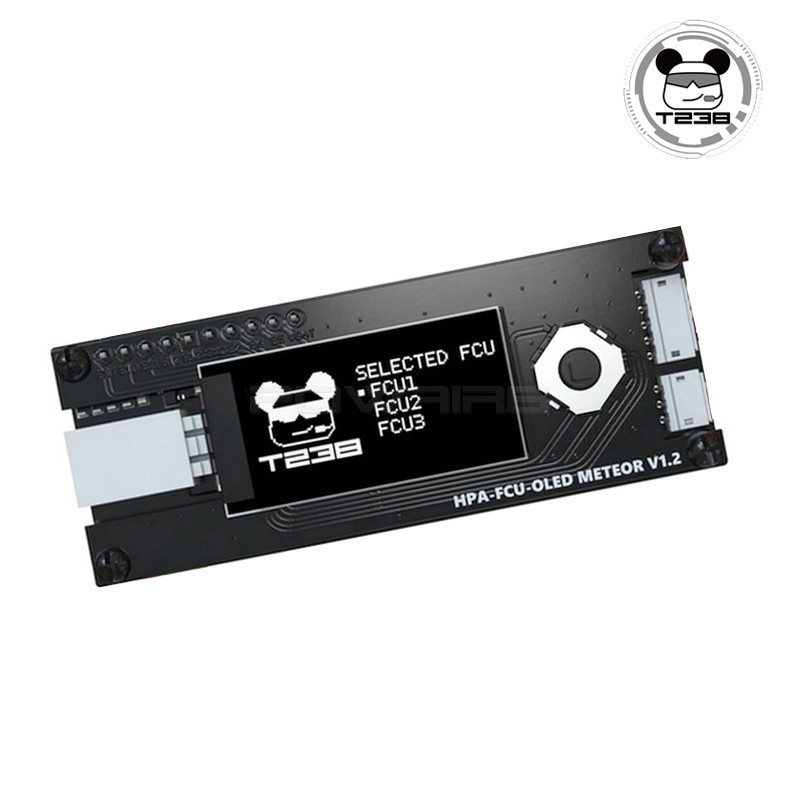

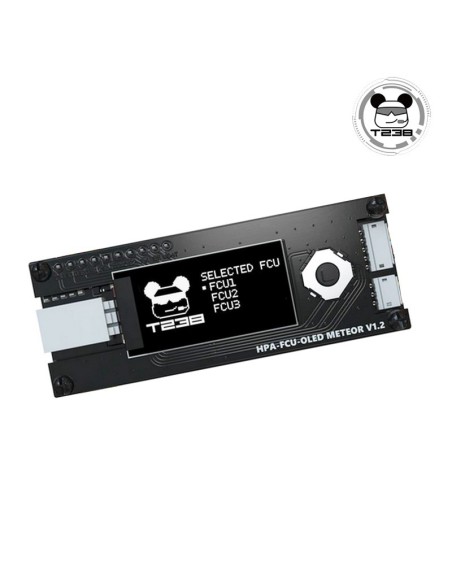

METEOR :

It is a programmable FCU designed specifically for HPA engines, supporting single-valve and double-valve engines, integrating power connector for gel ball magazines, and power connector for tracer Hop-ups. METEOR can simultaneously save the configuration parameters of three different engines, and can freely switch between the three sets of configuration parameters. It supports voltage input of 6~12.6V, making the power more abundant.

Functions:

1. METEOR supports 3 sets of FCU configurations, FCU1, FCU2, and FCU3. You can choose which FCU configuration to run in the CHOOSE FCU option.
2. Supports open bolt and closed bolt. When using a double-valve engine, open or closed bolts can be selected through CB mode.
3. Auto-loading function is designed for gel ball blaster magazines with a motor inside, when changing the magazine, the magazine motor will run automatically for a few seconds.
4. Paintball mode. When the trigger frequency is low, the engine will fire a single shot; when the trigger frequency is high, the engine will continue to fire continuously.
5. Sniper mode. After activating sniper mode, both semi-auto and full-auto modes execute single-shot shooting, and can only fire once within the set period. When sniper mode is activated, paintball mode is no longer effective.
6. Low battery protection, the system automatically sets the protection voltage based on the battery type. If the system detects that the battery voltage is lower than the protection voltage, it will automatically shut down.
7. Auto shutdown. If the device is not operated within the set time, such as pulling the trigger, loading the magazine, or pressing the settings button, the system will automatically shut down and enter sleep mode.
8. Friction control. This parameter is used to compensate for power after the engine is left idle for some time.
9. BB limit. This function is a virtual number of BB/gel ball setting, where VALUE is the limit of BB/gel ball number. When the number of shots reaches the limit, the system will wait for 2 seconds and cannot fire during this waiting period.

Features:

• Size: 60*23*10mm
• JST connector for battery, JST ZH 5Pin for trigger board
• Supports input voltage of 6~12.6V
• Supports single-valve or double-valve engines
• Integrated magazine power supply interface and auto pre-loading function for gel ball blasters
• Simultaneously save 3 sets of different engine configuration parameters
• Compatible with Polarstar V2/V3, Blackleaf Speed GEN2 trigger boards

Shooting Modes:

• SAFE: This model is completely the same as the original safe model. The trigger is stopped by the safety lever.
• SEMI: This model can be programmed to implement semi-auto, binary trigger, 3 rounds burst to 9 rounds burst, the default model is semi-auto.

Please note that instaling a HPA drop in system is recommanded for skilled gunsmith only. The product comes as a spare part and does not come with installation manual. By purchasing an HPA system you take entire responsability of the assembly and upcoming results. For products delivered with a trigger board, contactors / switch are not guaranted by the manufacturer in case of break. We advice to take extreme care when installing the selector plate in order to not break the button. Regarding the trigger switch, it is recommended to block mecanicaly the trigger once the the trigger switch is activated to avoid excessive pressure on it.
