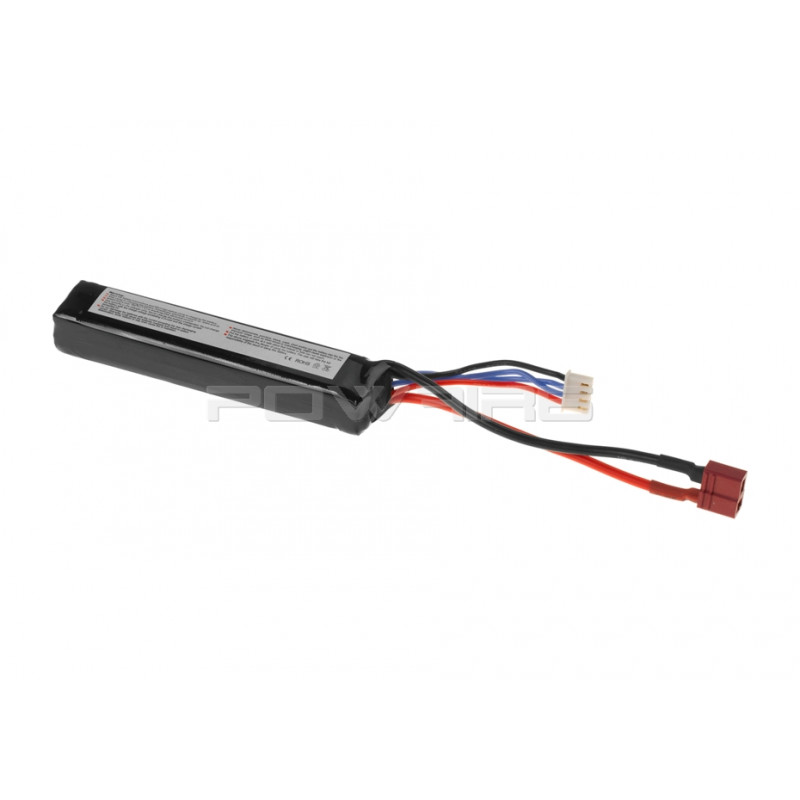

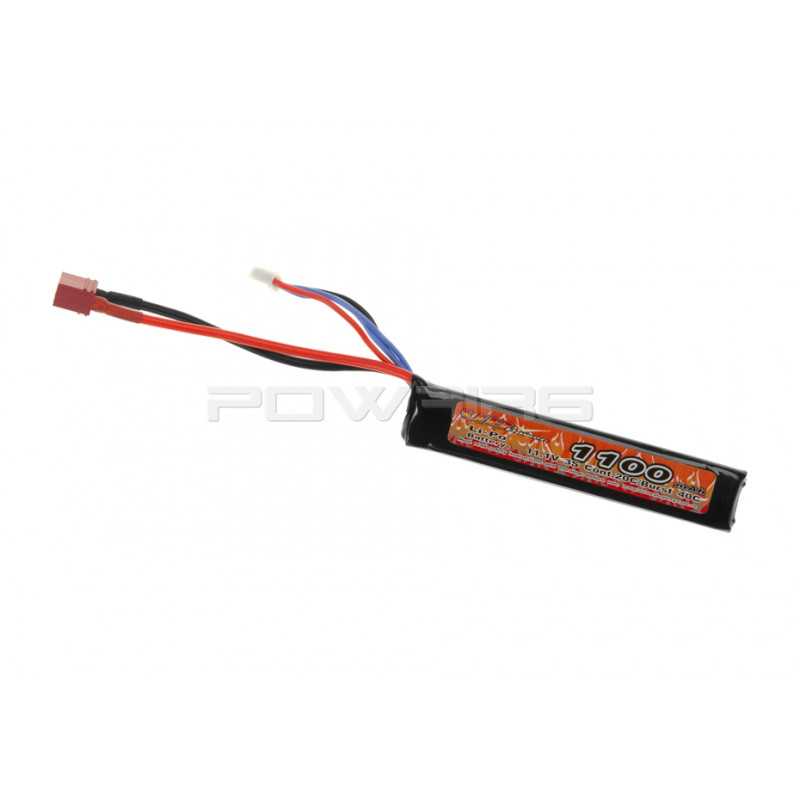

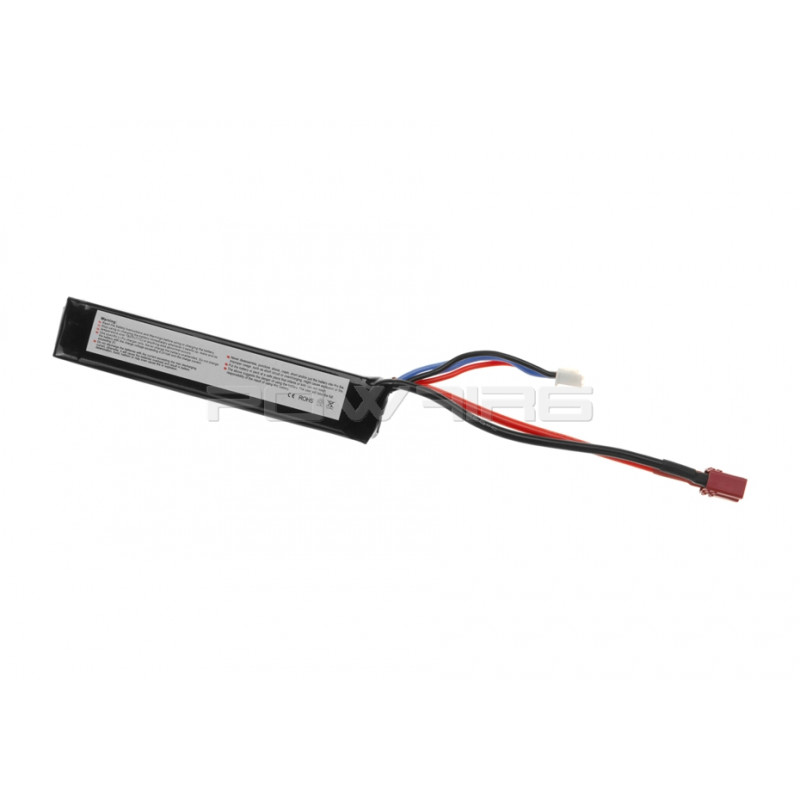

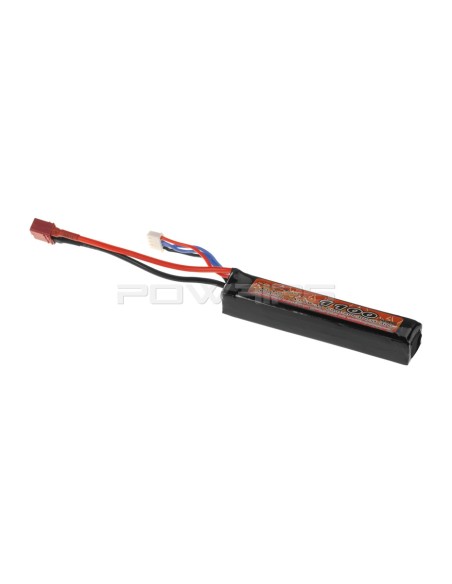

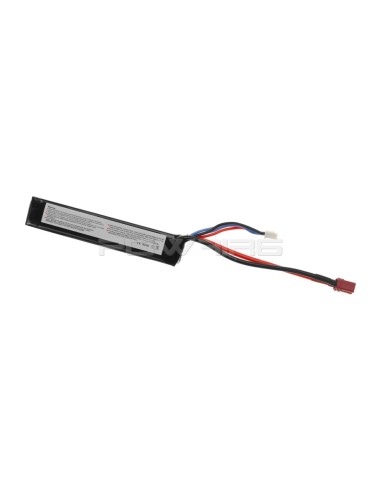

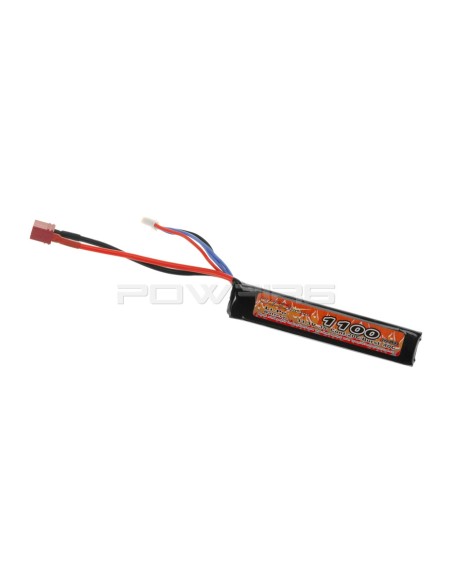

Voltage: 11.1 Volt
Capacity: 1'100 mAh / 20 C
Charging current (max.): 1.1 A
Discharge current (max.): 22.0 A
Watthour: 12.2 Wh
|Length||105mm x 17mm x 19mm|

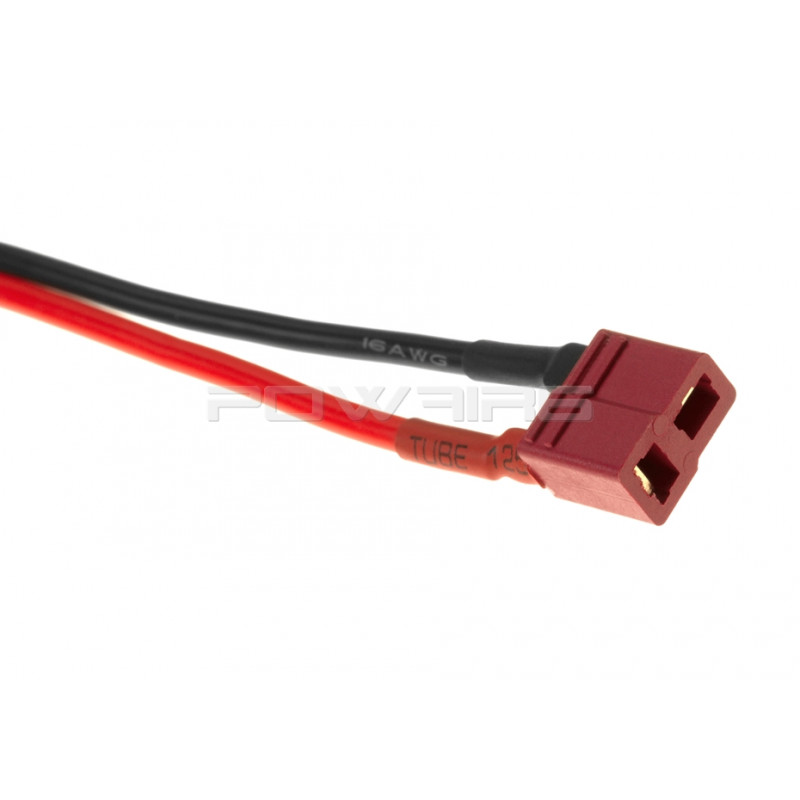

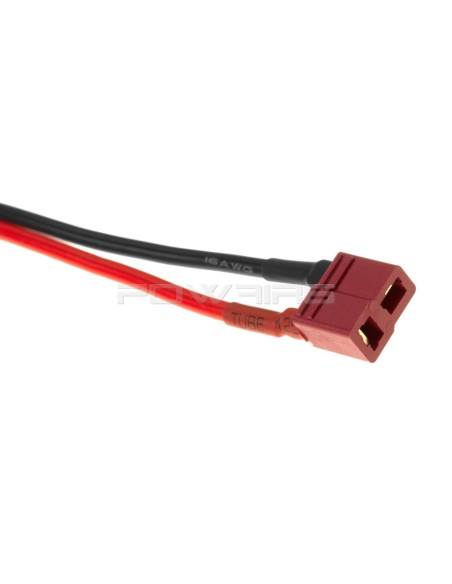

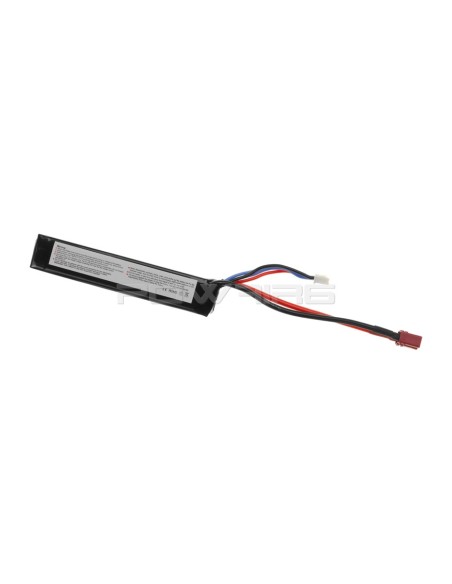

|Battery Connector||DEAN (T-Plug)|
IMPORTANT!!! READ MANUAL in its entirety before use.
Take extra precautions when handling Lithium Polymer (LiPo) batteries, as they require different safety measures compared to NiMH or NiCd batteries ! Failure to follow these instructions can result in severe permanent damage to battery, cause serious personal injury, or lead to a fire.
LiPO batteries are intended to be used with compatible radio controlled (R/C) models and airsoft guns only. Any damage caused by misuse or modifications will void your warranty and can cause serious injury.
By purchasing this product the buyer/user agrees that they have read and understood the safety precautions printed in this document and accepts full responsibilities of these risks. By agreeing, the user/buyer does not hold the seller, its distributors, or its retailers responsible for any accidents, injury to persons, or property damage that may occur. If buyer/user does not agree with these conditions, please return the battery in its original condition immediately to the place of purchase.
General Safety Guidelines :
If the battery reaches high temperatures in the event of an R/C Model crash, follow these steps:
Avoid Over-Discharging LiPo Batteries :
Over-discharging—continuing to use a LiPO battery even when it is almost completely drained or below its minimum voltage level—can cause permanent damage to the battery. The damage caused by this can be INTERNAL battery damage and will not always be visible. However, internal damage can eventually lead to a FIRE when attempting to re-charge it at later times. This problem can be easily and commonly overlooked in Airsoft applications because there are no indicators that the battery is at a low voltage and should be removed to be re-charged. Please exercise proper understanding and usage of the battery in your application to prevent safety issues or injuries and to prolong battery life.
Charging Batteries :
In most cases the charger's charging current should not exceed 1C, unless otherwise noted. A higher setting may damage the battery & cause a fire.
C-rating is a standard which defines a battery's operating current based on its capacity. 1C is the current it takes to approximately fully discharge a battery in 1 hour, and is simply defined by dropping the "h" in the pack's capacity (e.g. 1C for a 1000mAh LiPo battery is 1000mA, or 1A). The examples below demonstrate how to figure out the proper charging current for different Packs:
Battery packs should NEVER be over-discharged at any time. Specifically, over-discharging on the first use will ruin the battery permanently before you get to fully enjoy it. Be extremely careful not to over-discharge new packs:
Storage & Transportation :
Battery Life & Disposal of LiPo Batteries :
Product Warranty :
Cette batterie rentre t’elle dans un Specna arms SA H23 ?
Bonjour , oui elle est compatible .
