Maxx Model CNC hop up Chamber MXW for Wolverine MTW

CNC Aluminum Hopup Chamber MXW unit is precisely machined to perform accurately and consistently on HPA MTW Milspec, Forged, Billet and MTW-9 series. The Hopup Chamber MXW unit is built with an aluminum Rotary Dial Knob for fine hopup adjustments, the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot. The Hopup Chamber MXW unit is designed to accept the HPA MTW Engine M4 nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use. The Hopup Chamber MXW unit is wisely equipped with a self-centering inlet O-ring to ensure the hopup unit is inserted exactly in the center of the 11mm to 11.5mm inner bore HPA Engine nozzle outlet without wobbling. Also mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots, and included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.

***Test results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!

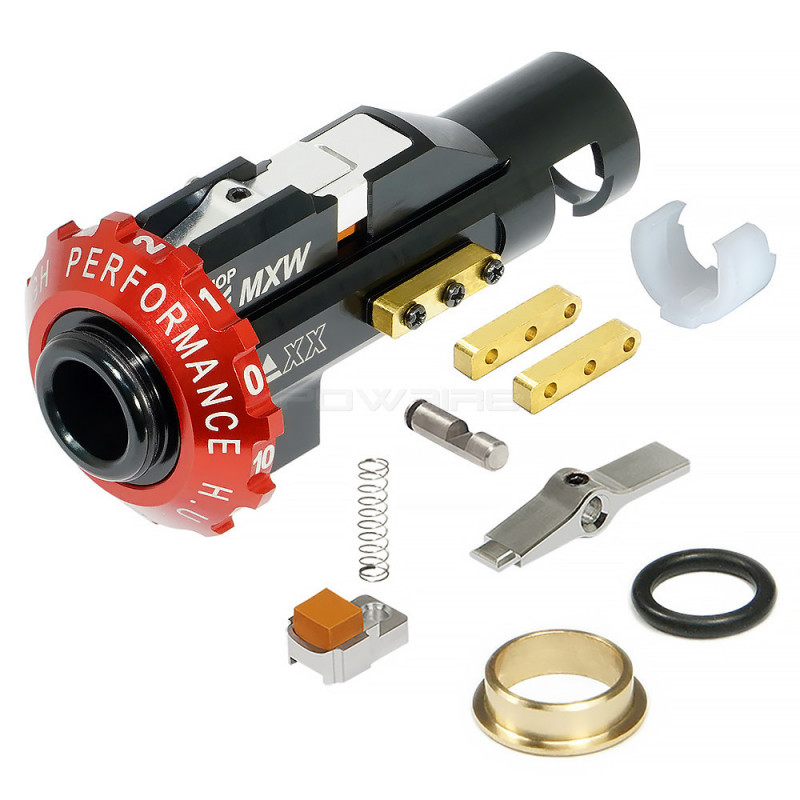

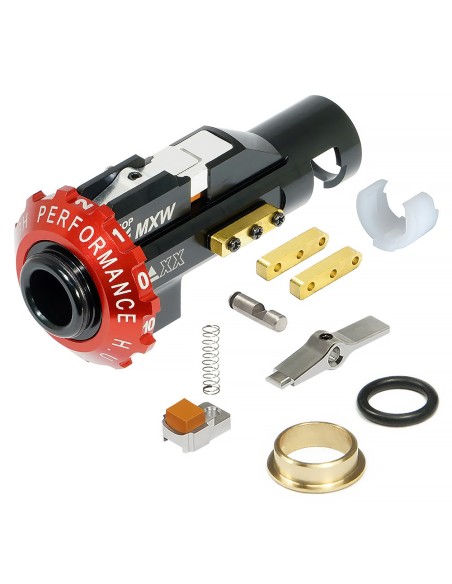

	Includes
	1 x CNC Aluminum Hopup Chamber MXW unit
	2 x CNC Brass 2.6mm Side Wing
	1 x CNC Steel Pivot Pin
	1 x CNC Aluminum Hopup Lever
	1 x CNC Aluminum Soft Flat Nub (4mm)
	1 x Steel Nub Spring
	1 x CNC Delrin Locking C-Clip
	1 x CNC Brass Barrel Spacer
	1 x Brass Barrel Spacer Holder Oring
	1 x CNC Aluminum Rotary Dial Knob

	Overall Length: 51.15mm
	Overall Height: 22mm
	Inlet Diameter (to fit into HPA Nozzle Outlet): 11mm to 11.5mm
	Hub Outer Diameter (to fit into Outer Barrel): 12mm
	Hub Inner Diameter (to fit Nozzle): 7mm
	Material: Aluminum 6061

	Features
	Machined from a solid aircraft aluminum block with tight tolerances to achieve the most accuracy, consistency, and durability
	Performed accurately and consistently on HPA MTW Milspec, Forged, Billet and MTW-9 series
	Precision Rotary Dial Knob for fine hopup adjustments
	Re-engineered the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
	Removable Steel Pivot Pin for ease of setup and maintenance
	Accepted the HPA MTW Engine M4 nozzle length
	Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
	Wisely equipped with a self-centering inlet O-ring to ensure the hopup unit is inserted exactly in the center of the 11mm inner bore HPA Engine nozzle outlet without wobbling
	Mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots
	Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
	Compatible with any 11mm to 11.5mm inner bore HPA Engine nozzle outlets

	Usage
	Compatible with most HPA MTW Milspec, Forged, Billet and MTW-9 series

	Requires
	Wearing eye protection is recommended
	Use proper tools for disassembly and reassembly the gear box with great care due to spring tension
	Bearing lubricant oil/grease is recommended for smooth operation

	Instruction
	Instruction Manuals are included
