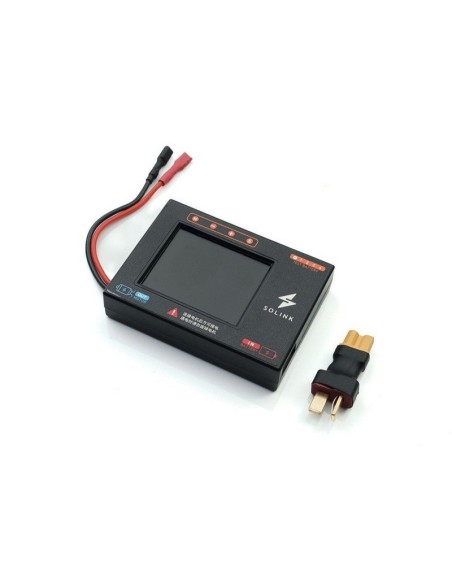

SOLINK Controller for adjustable V5 brushless motor

Motor speed can be adjusted between 10k-46k rpm with 1k rpm increments with this digital programming card (Default value: 46k rpm ,11.1v). The starting torque of the motor can be adjusted by current change. (Default value:60%)

Button Description:

• M :
  • Short press to select the item to be set
  • long press to quickly reconnect when disconnected from the motor.
• – :
  • Short press to decrease the value of the selected item
  • long press to quickly decrease the value of the selected item.
• + :
  • Short press to increase the value of the selected item
  • long press to quickly increase the value of the selected item.
• S :
  • Long press to save the settings to the motor.

Attention! Safety precautions:

• Some malfunctions, poor contact, or unexpected situations may cause the motor to rotate unexpectedly. Therefore, the motor must be securely fixed before using this product.
• The motor must be reliably connected to the cable of the setting card before the setting card can be powered on, otherwise it may cause accidental rotation of the motor.
• The battery voltage used to power the setting card must be higher than 7.4V, otherwise it may cause the motor to rotate unexpectedly.
• After the settings are saved, the settings card will self-disconnect and disconnect from the motor. If you want to reset it, you must power it on again or press and hold the M button to reconnect.
• While in the setting menu, do not disconnect the motor wires, otherwise it may cause the motor to rotate unexpectedly.
• If the maximum current rating of the ETU is lower than the defined starting current of the motor,we are not responsible for the damage it might caused.

This digital programming card only works with SOLINK V5 Brushless motor, not workable for our other models either other brand motor.
