Mil-dot (H) Reticle
- 5 levels of red & green illumination. It helps to compensate for the hop-up effect at different distances as well as to compensate for wind. Brightness can be adjusted step by step, makes it highly visible in all kinds of environments and at light conditions.

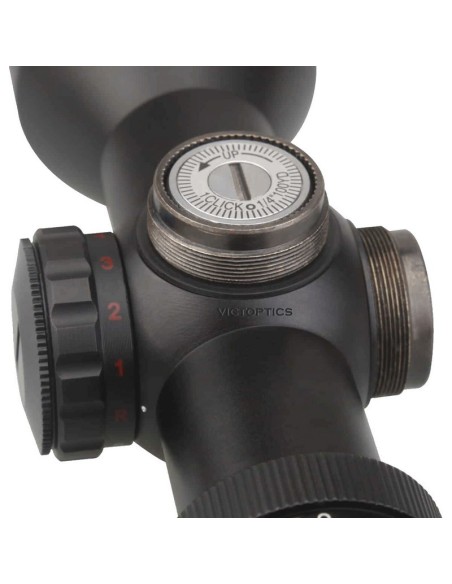

Easy Adjustment
- 1/4 MOA click value, up to 90 MOA adjustment range. Both windage and elevation are easy to adjust with hex or nails. Turret caps help to protect the dial from dirt and abrasion, designed for fierce Airsoft/paintball combat, hunting and other outdoor applications.
Diopter Adjustment
- Diopter compensation from fast-focus eyepiece (+2 to -3). Simply turn the wheel until you get a sharp image. Friendly to myopia and hyperopia.
Specifications:
- Magnification:3-9x
- Objective Lens Dia:40mm
- Ocular Lens Dia.:28mm
- Exit Pupil:13.3-4.4mm
- Optics Coating:Multi coated
- Field of View:11.5-34.9 feet @ 100 yards
- Eye Relief:50-45mm (2.0-1.8″)
- Length:190mm (7.5 inch)
- Weight:330g (11.6oz)
- Tube Dia.:25.4mm 1″
- Click Value:1/4 MOA
- Elevation Range:90MOA
- Windage Range:90MOA
- Parallax Setting:100 yards
- Reticle: Mil-dot (H)
- Material:6063-T6 aluminum alloy
- Illumination:5 red & green
- Battery:CR2032
- Distance between middle turret part to power ring: 23mm (0.9 inch)
- Recoil fit 223 and 5.56mm
- Distance between middle turret part to objective lens: 20mm (0.8 inch)
- Diopter compensation from fast-focus eyepiece (+2 to -3)
- Including items: 25.4 weaver ring, lens caps and cleaning cloth etc.
Features:
- 25.4mm 1“ Tube, Multi-Coated
- 1/4 MOA
- Red & Green Illumination
- w/ Lens Caps
