T238 DTU VECTOR For Krytac Kriss Vector AEG

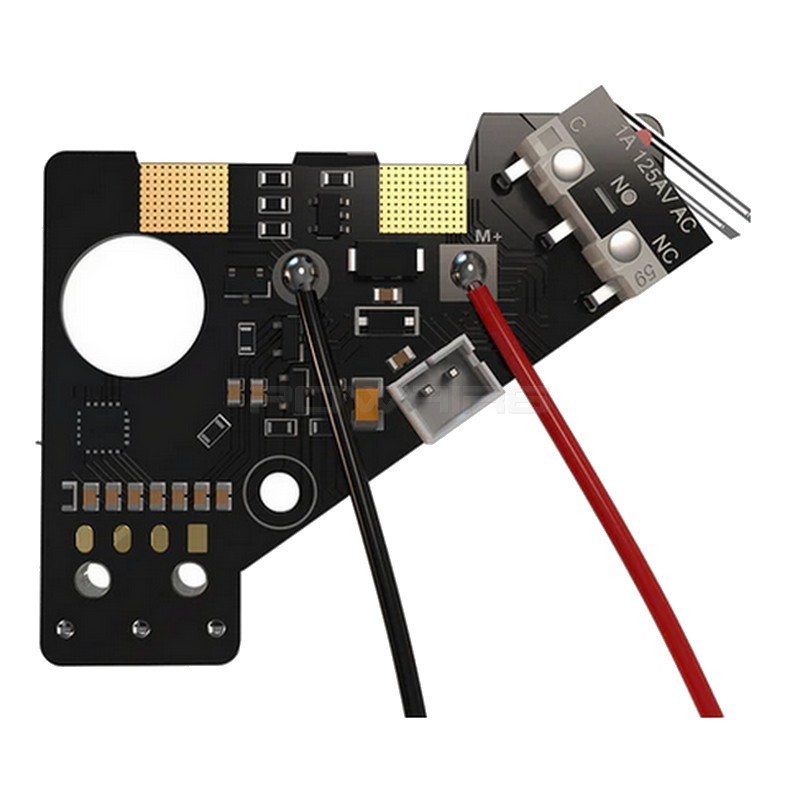

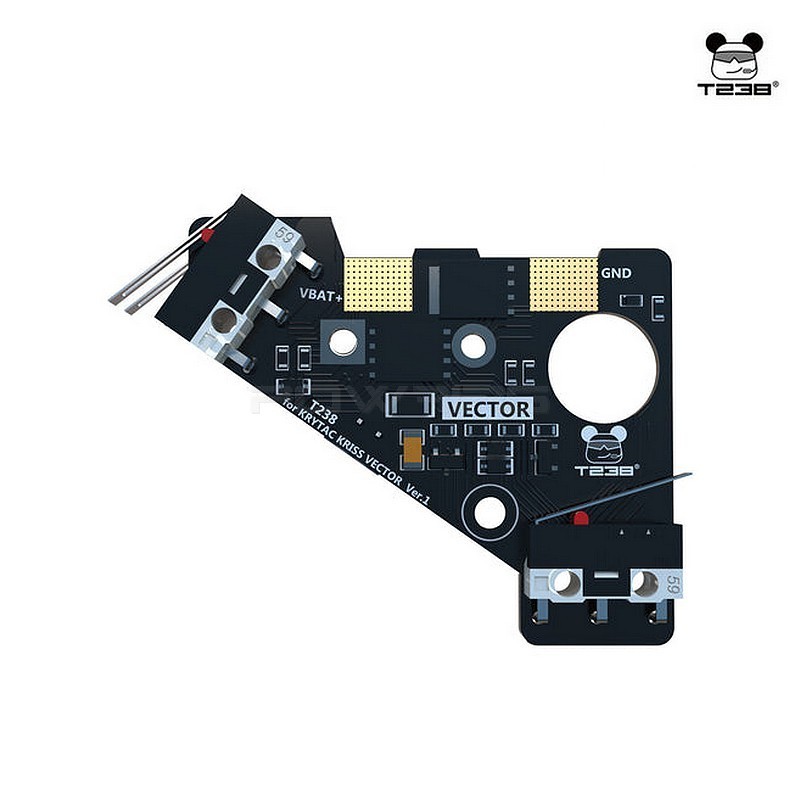

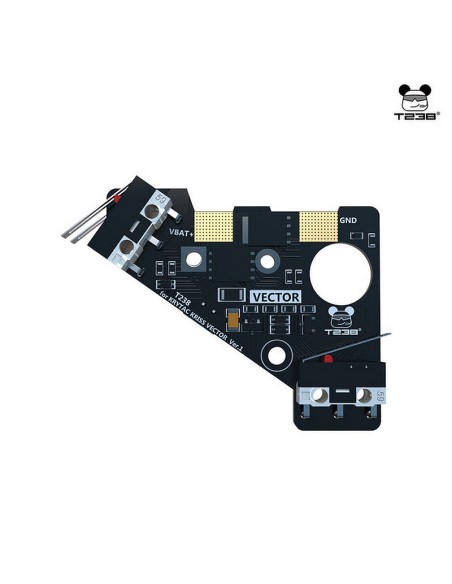

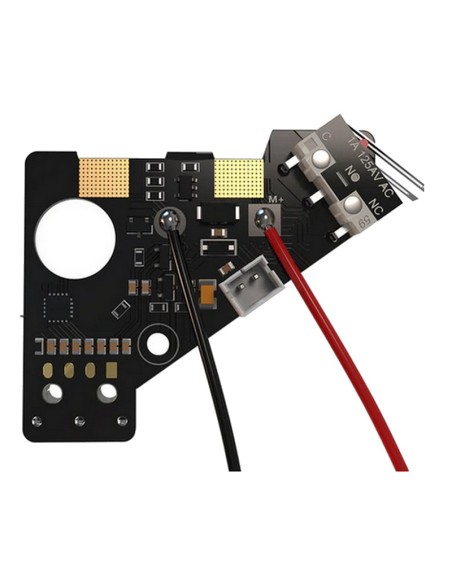

The T238 digital trigger unit VECTOR is a programmable MOSFET electronic module designed specifically for KRYTAC KRISS VECTOR AEG. The system is equipped with a high-speed micro digital processor and two high-power MOSFET chips. It has multiple personalized programmable functions such as active braking, "paintball" shooting mode, binary trigger, and multiple round bursts. In addition, it also has automatic shutdown, battery low voltage protection, and gearbox block-up protection functions, which can effectively improve the stability, firing rate, and response speed of the gearbox and completely eliminate the problem of single shot to multiple shots in the gearbox.

Features:

• After the system is connected to the battery for the first time, the trigger switch needs to be triggered to power the system. When it starts correctly, the motor will emit a "Beep" signal
• Automatic shutdown: If the trigger switch is not trigignal tgered within 40 minutes, the system will automatically shut down and sleep. To power on again, the trigger switch needs to be triggered
• Short circuit protection: When there is a short circuit between the positive and negative poles of the motor, the red LED of the system will flash. At this time, the power should be immediately cut off for troubleshooting
• Battery low voltage protection: The system will automatically recognize the number of battery cells. When the voltage of a single battery cell is lower than the set value, the system will emit a "Beep!" signal through the motor
• Gearbox block-up protection: When a gearbox block-up occurs, the system stops working and emits an elongated "beep" sound.
• When the mosfet overheat, the trigger only "beep!” and the motor does not rotate. It must wait to cooling
• Adjustable active braking force: Active braking uses excess energy from the motor to stop the overspin of the motor and timely stop the piston. High-torque motors have the strongest braking effect.
• Built-in multiple shooting modes, programming shooting modes through trigger operation
• Adjustable piston position: The piston position in semi-auto mode can be adjusted backward by programming the brake delay time to achieve the PRE-COCKING function and reduce the firing delay
• Adjustable firing rate: Controlling the firing rate by programming the interval between two trigger pulls during a semi-auto shot, achieving the effect of controlling the firing rate; During full-auto firing, the effect of controlling the firing rate is achieved by controlling the motor speed

Shooting modes:

• Binary-trigger mode: In this mode, when the trigger is pressed and released, the gearbox will fire once each.
• Paintball Mode: In this mode, if the trigger switch is triggered at a slower frequency, the system is in single-shot mode. If the trigger switch is triggered at a faster frequency, the system is in binary-trigger mode.
• Sniper Mode: In this mode, regardless of the position of the selector plate, the system only has semi-auto mode, and a certain amount of time is required after each shot, and the length of time can be adjusted.

Specifications:

• Size 45 X38 X13 mm
• Working voltage 6-16.8V
• Supports up to 300A starting current and 100A braking

Note: This product requires soldering and wiring. It is recommended that installation is undertaken by an experienced technician.
