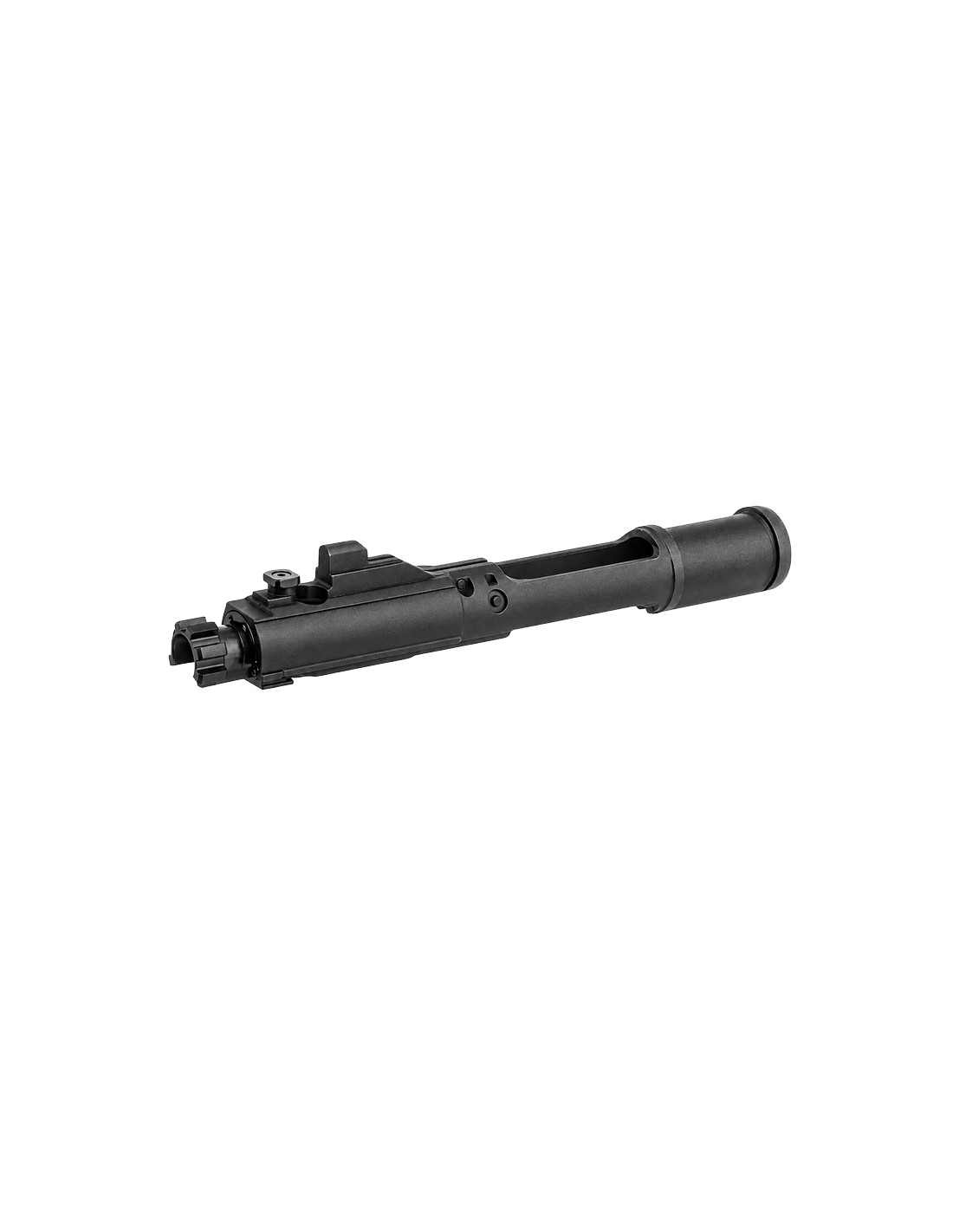

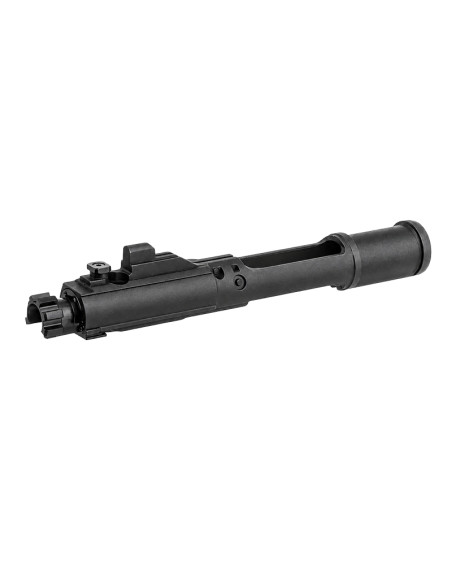

- Original replacement part for Umarex / VFC HK417 GBBR
- Includes :
- 09-1 — PSCW261522 : M2.6 × 15 screw
- 09-2 — VG29BLT020 : Loading nozzle retainer
- 09-3 — VG29BLT030 : Loading nozzle body
- 09-4 — VGB1SPG025 : Loading nozzle valve spring
- 09-5 — VGB1BLT040 : Loading nozzle valve
- 09-6 — VG40BLT0B0 : Loading nozzle lower component
- 09-7 — VG40BLT0B0 : Loading nozzle bottom cap
- 09-8 — PBOT150801 : 1.5 × 8 mm pin
- 09-9 — PBOT151001 : 1.5 × 10 mm pin
- 09-10 — PRIG000053 : 7 × 1 mm O-ring
- 09-11 — PRIG000087 : 15 × 2 mm O-ring
- 09-12 — VGE0SPG027 : Loading nozzle return spring
- 09-13 — VGE0BLT070 : Loading nozzle retaining button
- 09-14 — PBOT150601 : 1.5 × 6 mm pin
- 09-15 — PRIG000035 : Retaining button O-ring
- 09-16 — PSCW030622 : M3 × 6 loading nozzle retaining screw
- 09-17 — VG29BLT010 : Main bolt carrier body
- 09-18 — VG29BLT040 : Bolt head retaining spacer
- 09-19 — PSCW031002 : M3 × 10 screw
For further details, please refer to the exploded view available in the attached documents.
