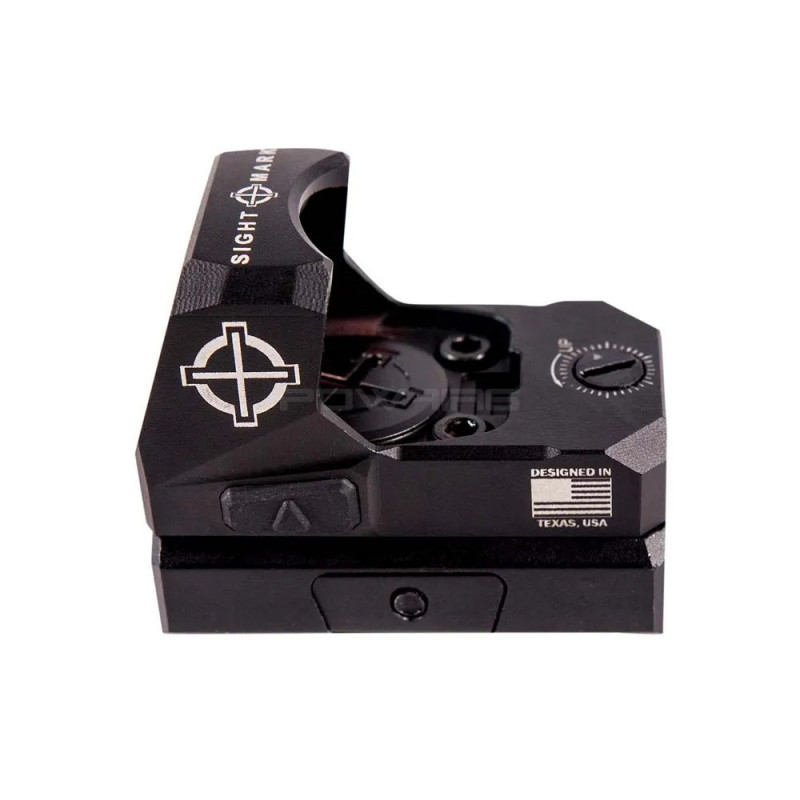

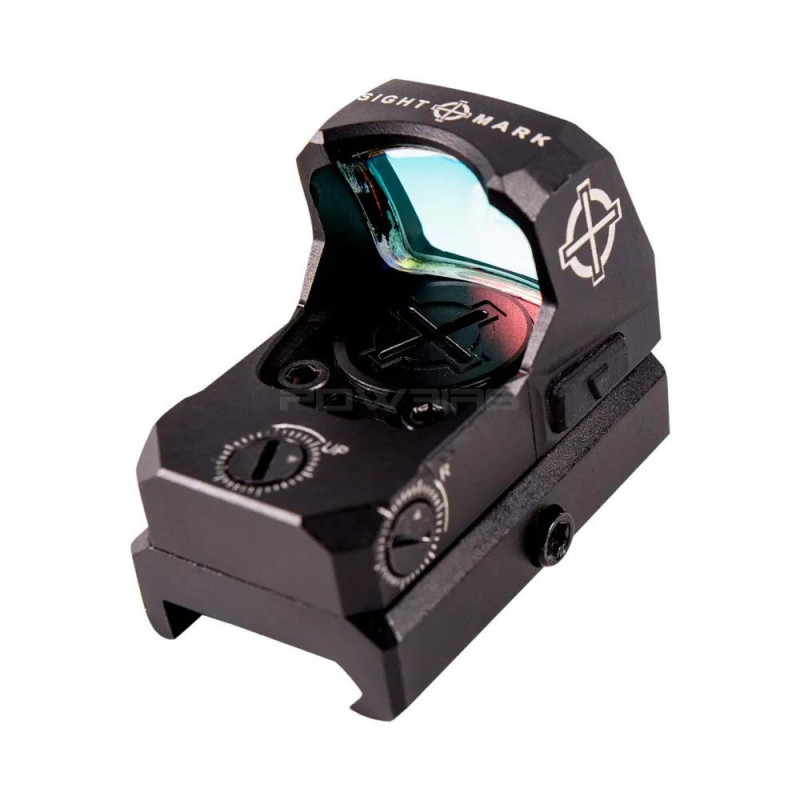

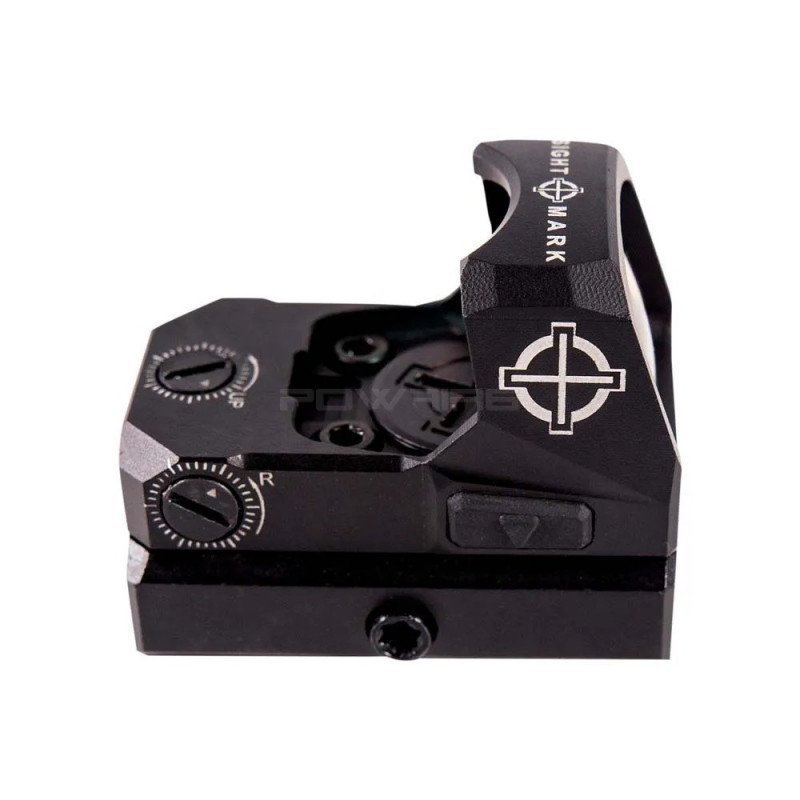

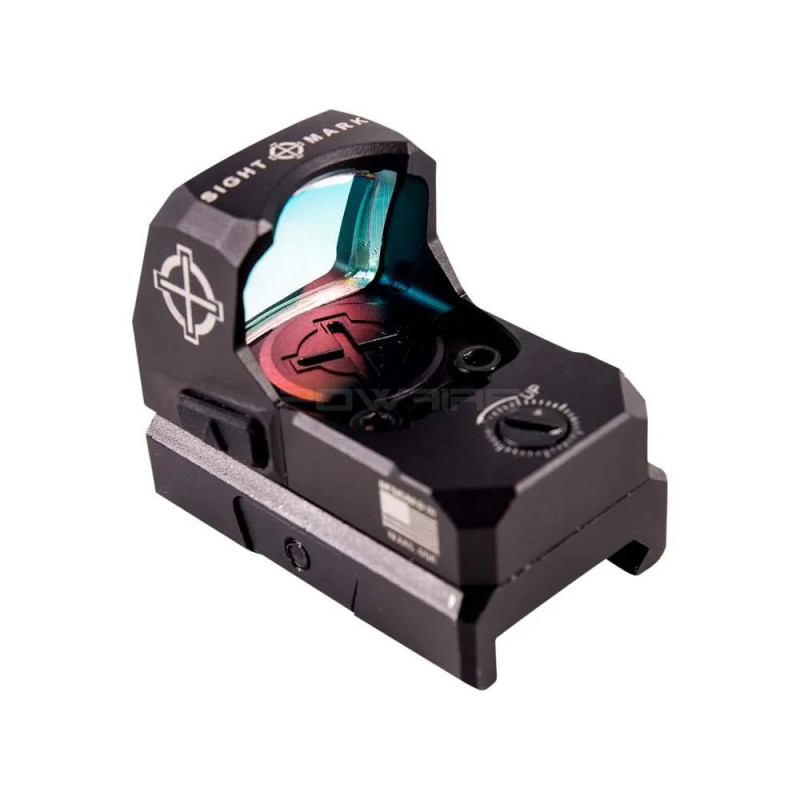

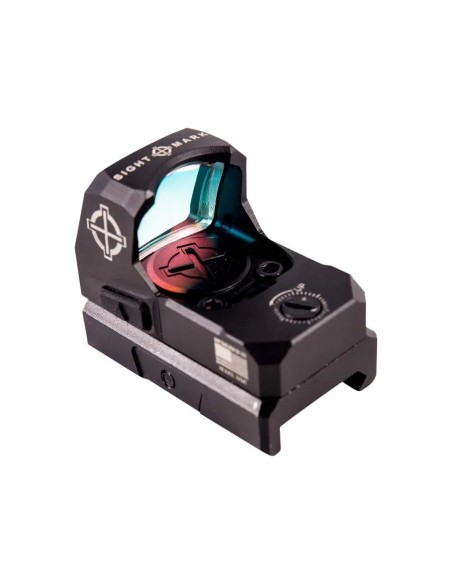

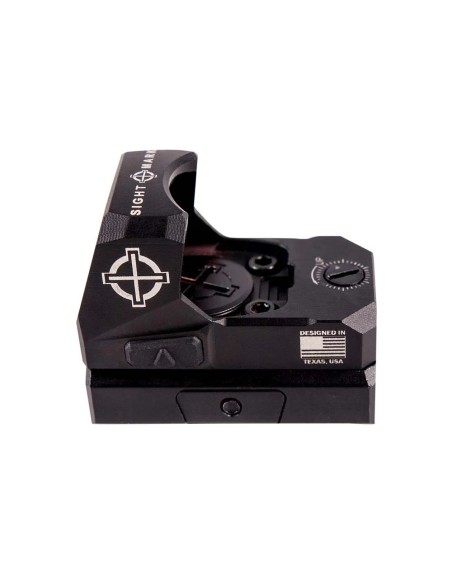

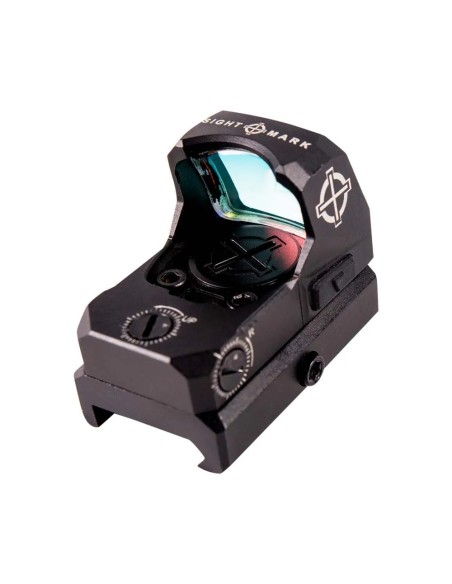

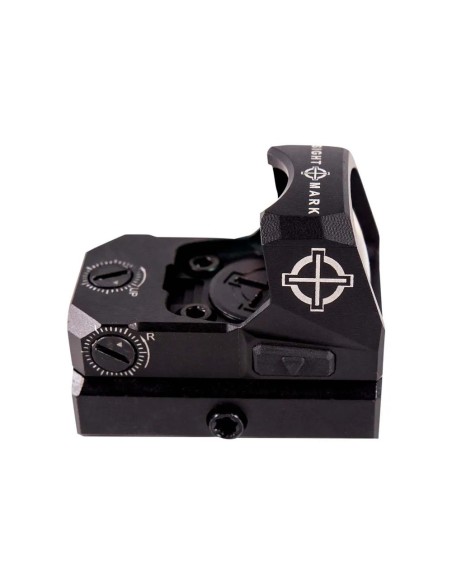

A rugged, micro red dot optic ideal for a wide-range of shooting applications, the Mini Shot A-Spec reflex sight’s wide field of view, 2 MOA red dot reticle and included AR riser and low-profile mounts allow it to be used effectively and comfortably on pistols, rifles and even shotguns. Built to last, the Mini A-Spec features a rugged aluminum alloy housing. Ten reticle brightness settings and user-friendly ambidextrous digital brightness controls permit the A-Spec to be used in virtually any environment, from bright sunny days to low-light conditions. All Mini A-Specs boast a coated and scratch-resistant lens, IP67 waterproof rating and are both shockproof and dustproof.
- Windage and elevation click adjustments
- 10 reticle brightness levels
- Ambidextrous digital brightness switch
- Advanced parallex free lens design
- Red reticle illumination
- Rugged lightweight aluminum alloy housing
- Scratch resistant lens coating
Product Specifications
| Reticle, Type | 2 MOA |
|---|---|
| Reticle, Color | Red |
| Reticle Brightness Setting | 1 - 10 |
| Magnification | 1 |
| Objective Lens | 22 x 17 mm |
| Eye relief (in/mm) | Unlimited |
| Elevation Range of Adjustment | 110 MOA |
| Windage Range of Adjustment | 110 MOA |
| Adjustment Value | 1 MOA |
| Parallax Setting | 25 yds |
| Finish/Color | Matte Black |
| Body Material | 6061-T6 Aluminum |
| Maximum Recoil | .375 H&H |
| IP Standard | IP55 - Water Resistant |
| Shockproof | Yes, 3ft / .9m |
| Lens Coating | AR Red |
| Mount Type | Weaver / Picatinny |
| Battery Type | CR1632 |
| Battery Life | 15 - 160 hours |
| Battery Voltage | 3 V |
| Operating Temperature | -4 to 122 / -20 to 50 °F / °C |
| Length w/ low mount | 1.854 / 47 in / mm |
| Width w/ low mount | 1.223 / 31 in / mm |
| Height w/ low mount | 1.552 / 39 in / mm |
| Weight w/ low mount | 2.3 oz. |

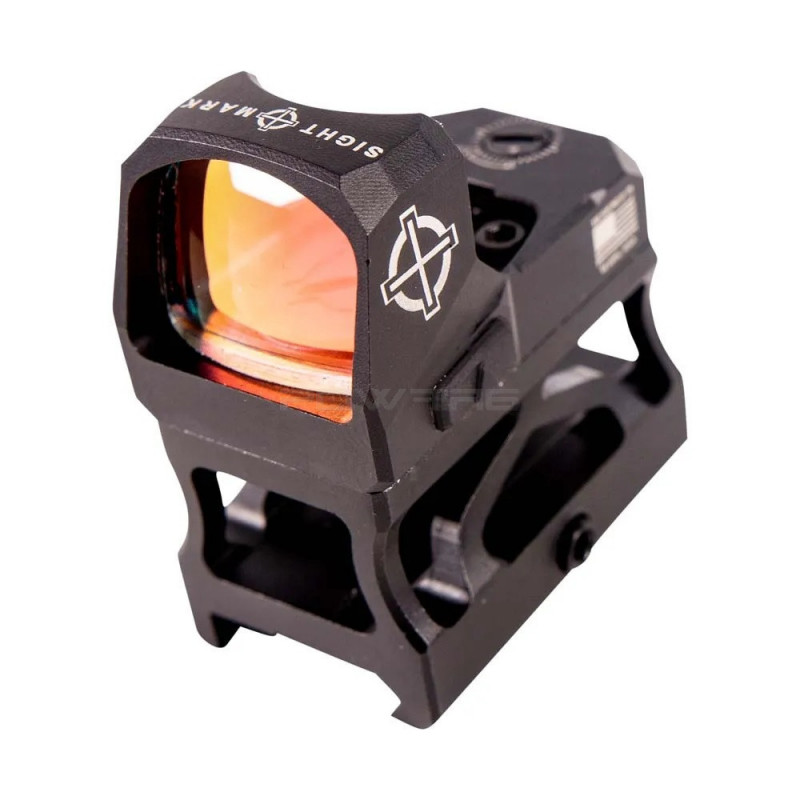

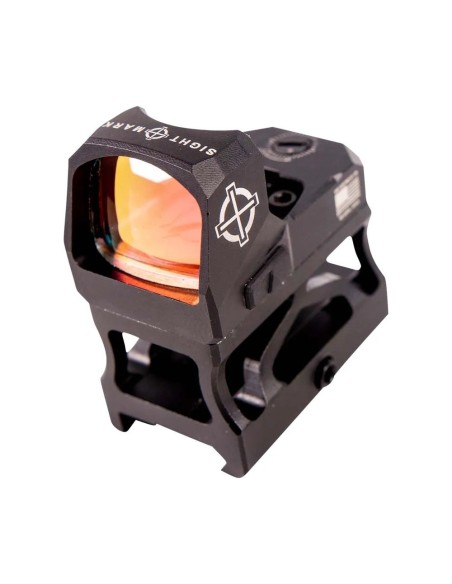

| Length w/ riser mount | 1.854 / 47 in / mm |
| Width w/ riser mount | 1.223 / 31 in / mm |
| Height w/ riser mount | 2.195 / 55.77 in / mm |
| Weight w/ riser mount | 2.9 oz. |
