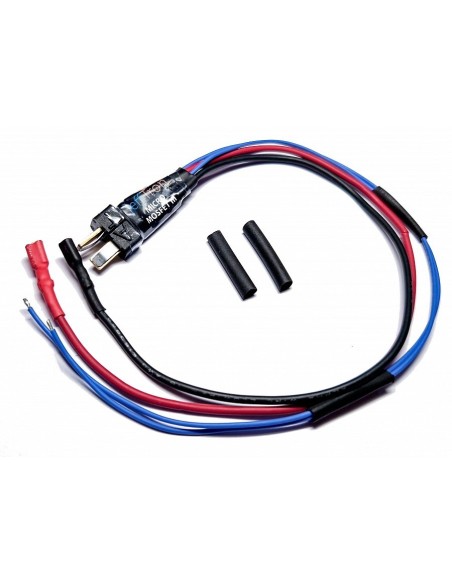

Complete wiring is designed for airsoft replica AK family with battery above the gearbox (under the dust cover).
Everything is ready, just solder the loose wires to the original trigger contacts in the gun.

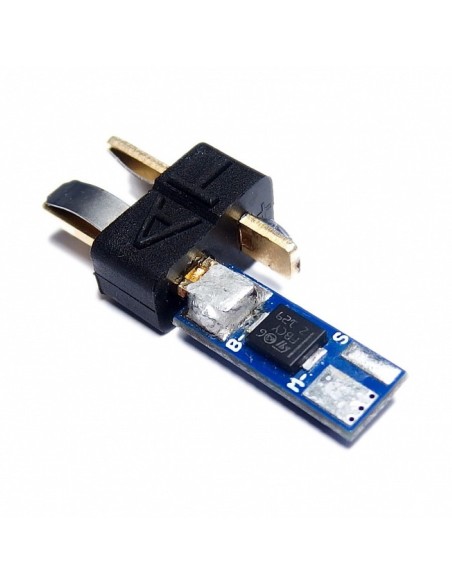

The Micro mosfet III is integrated into the DeanT connector so it takes up minimal space.
MOSFET BENEFITS:
- Increases gun rate of fire and battery holds longer, than with basic wiring.
- Designed for spring up to M170 (equivalent for current 90A single shot fire or 35A burst fire for max. 30s).
- Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
- No current consumption in the idle mode
- No sparking on switch contacts
- Board covered by conformal coating, it protect it against water
SPECIFICATIONS:
- AK mosfet is suitable for installation with original V3 contacts in AK47 or AK74 airsoft gun, which are accessible from outside of mechabox

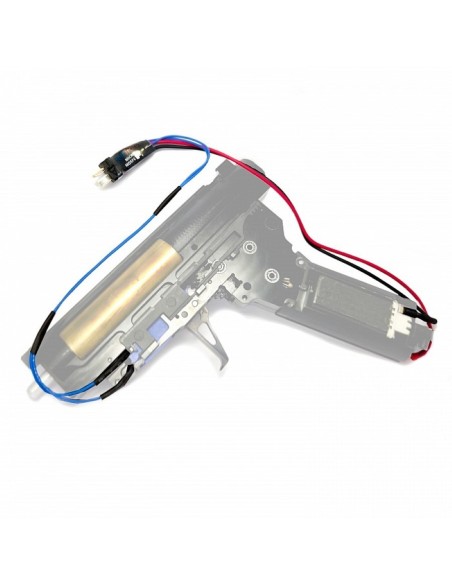

- The complete wiring allows quick and easy installation into the weapon, it is designed for all types of AK weapons with the battery located above the mechabox (under the dust cover)
- There are high quality powerwires 1,5 qmm (AWG16) with with thin and hard MPPE insulation and signal blue wire 0.34 qmm (AWG22) with MPPE insulation
- In auto fire mode piston stops in random position due the gearbox design
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox
PACKING:
- Micro mosfet III soldered on T-Plug connector with complete wiring for battery above gearbox AK47 or AK74
- 2x black heat shrink tube for overlapping the switch contacts
- Installation manual in English
